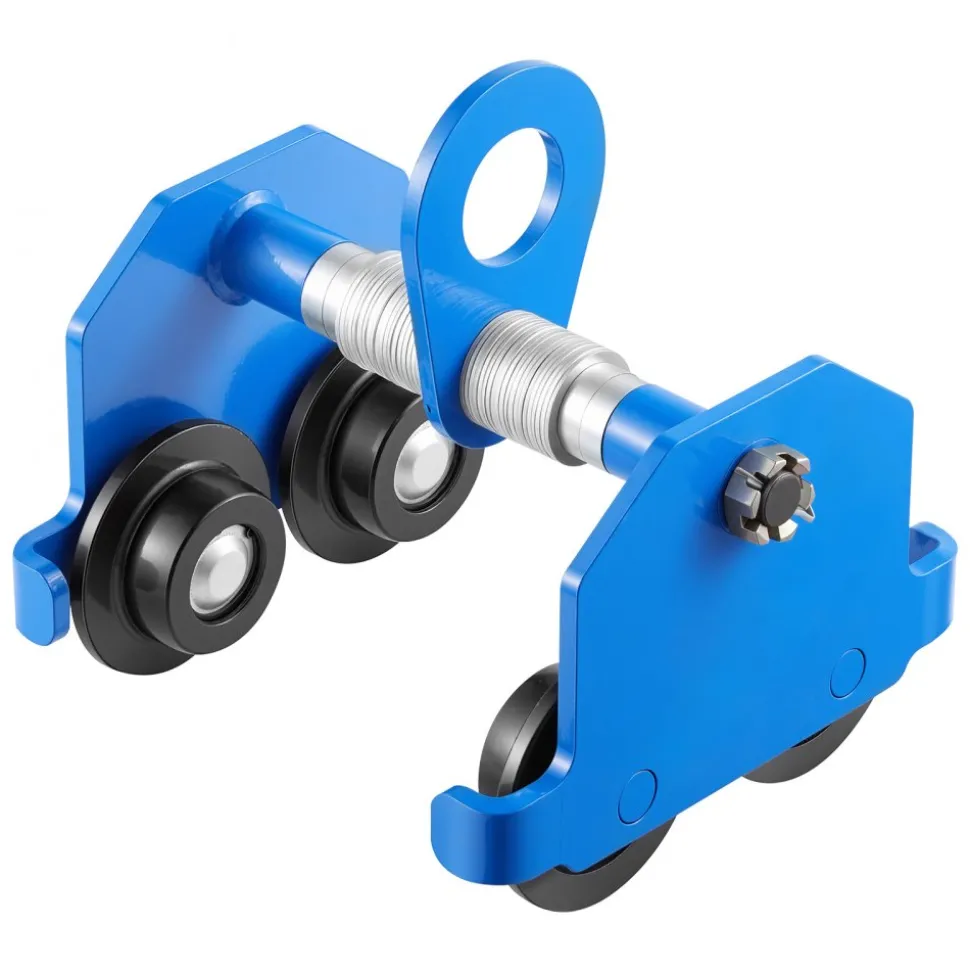

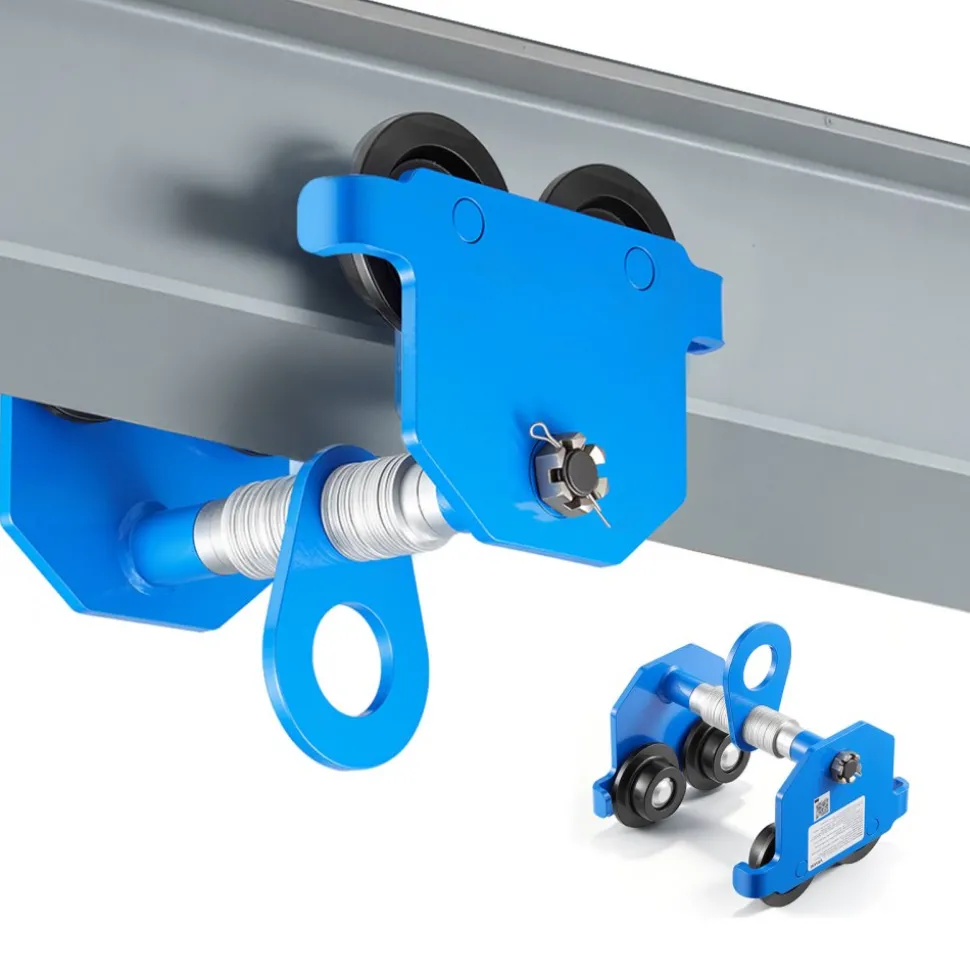

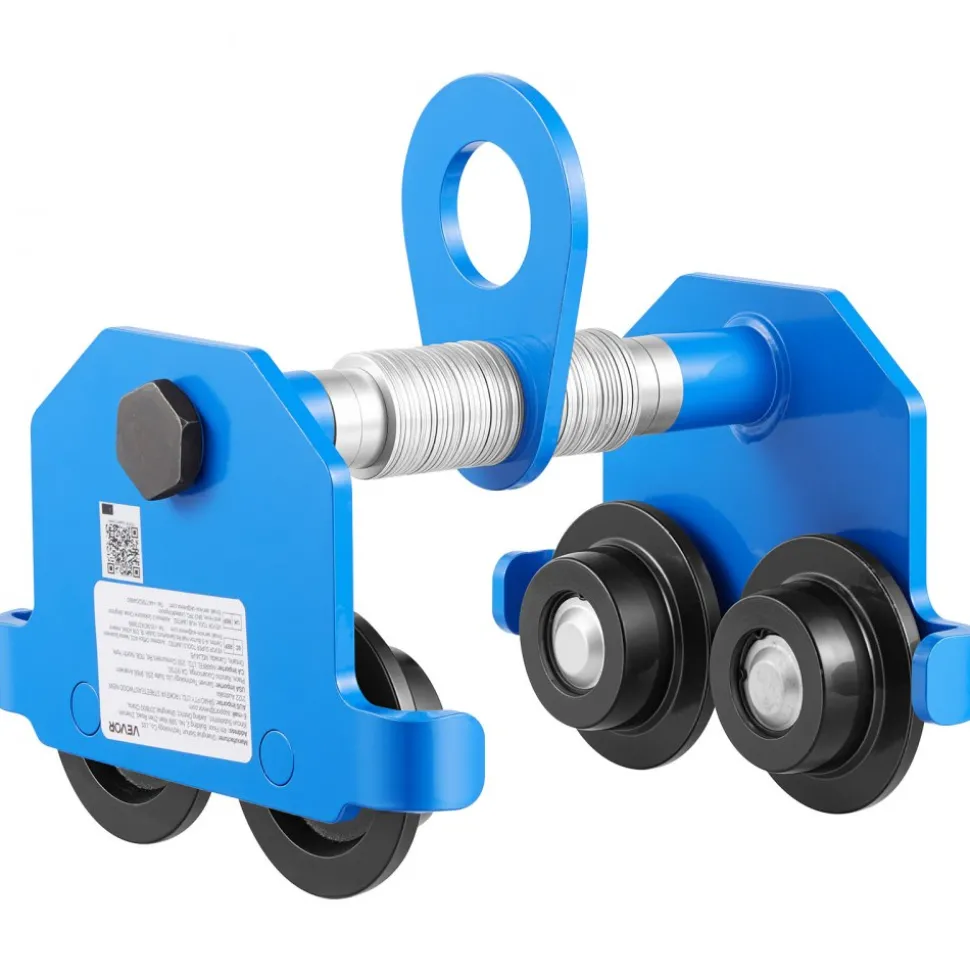

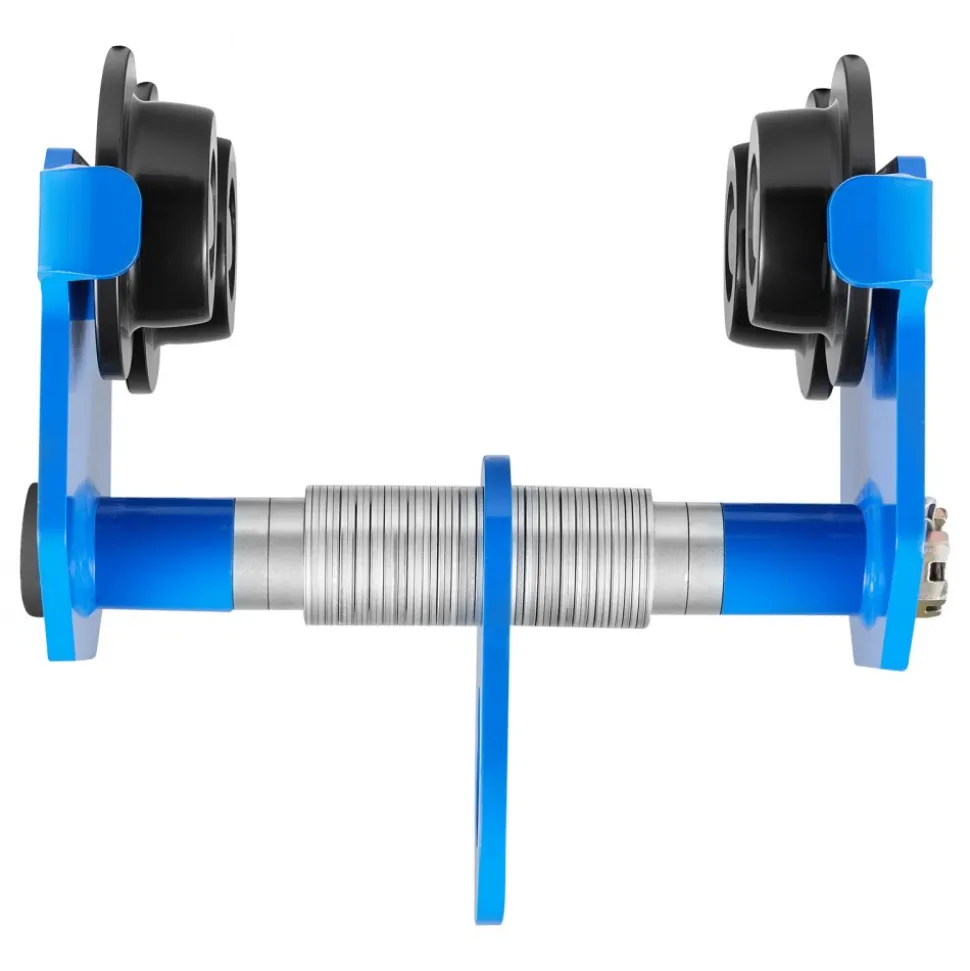

VEVOR Manual Trolley, 2200 lbs/1 Ton Load Capacity, Push Beam Trolley with Dual Wheels, Adjustable for I-Beam Flange Width 2.4″ to 7″, Heavy Duty Carbon Steel Garage Hoist for Straight & Curved I Beam

2200 Lbs Capacity I Beam Hand Pushed Trolley for Heavy Loads

With a load capacity of up to 2200 lbs (998 kg) in normal operation, this I-beam hand-propelled trolley is ideal for warehouse material handling, repositioning heavy equipment, and lifting engines without hitting structural restrictions. This grade is important for garage and workshop applications because engine blocks, transmissions, and large machinery parts sometimes exceed the load capacities of lighter-duty trolleys used for general hauling.

In this weight class, the trolley must also be able to support the static weight when not in motion and maintain stability and control throughout the lifting and moving procedures. The static load ratings do not fully represent the forces created by the dynamic stresses of movement under load; velocity, irregularities in the beam surface, and changes in direction are all factors that must be addressed in addition to the suspended load.

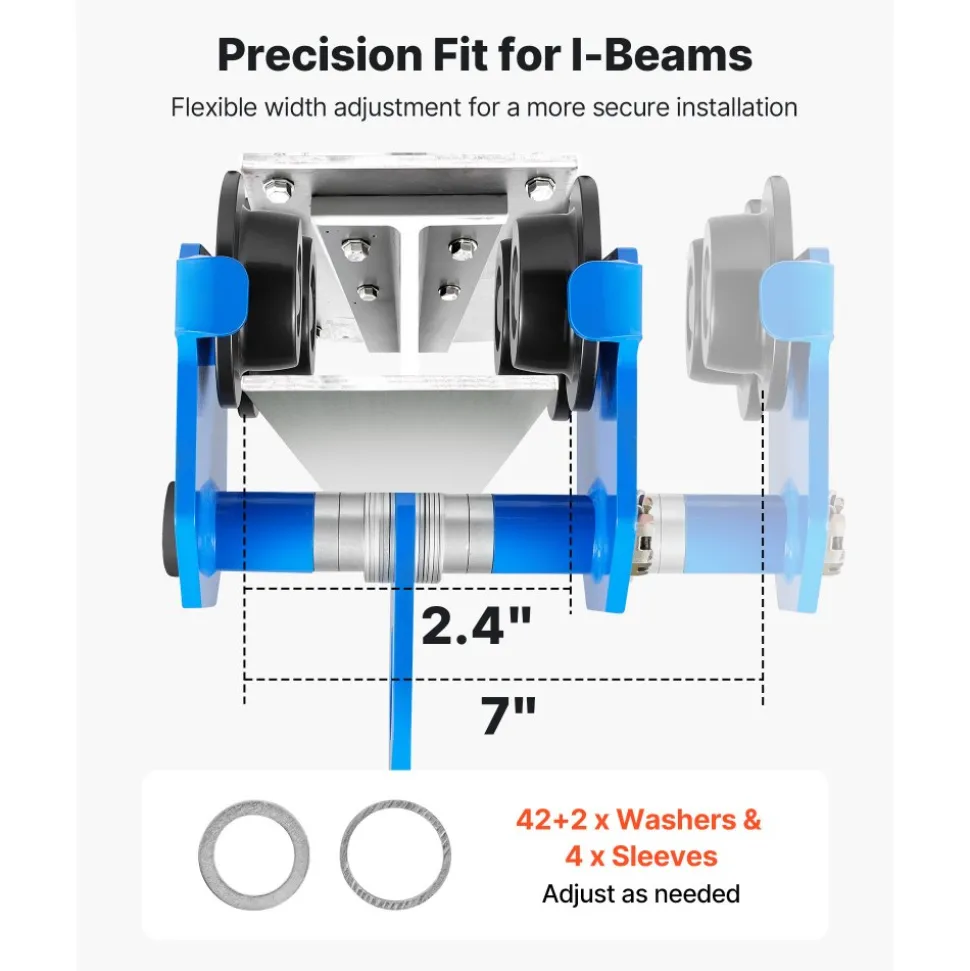

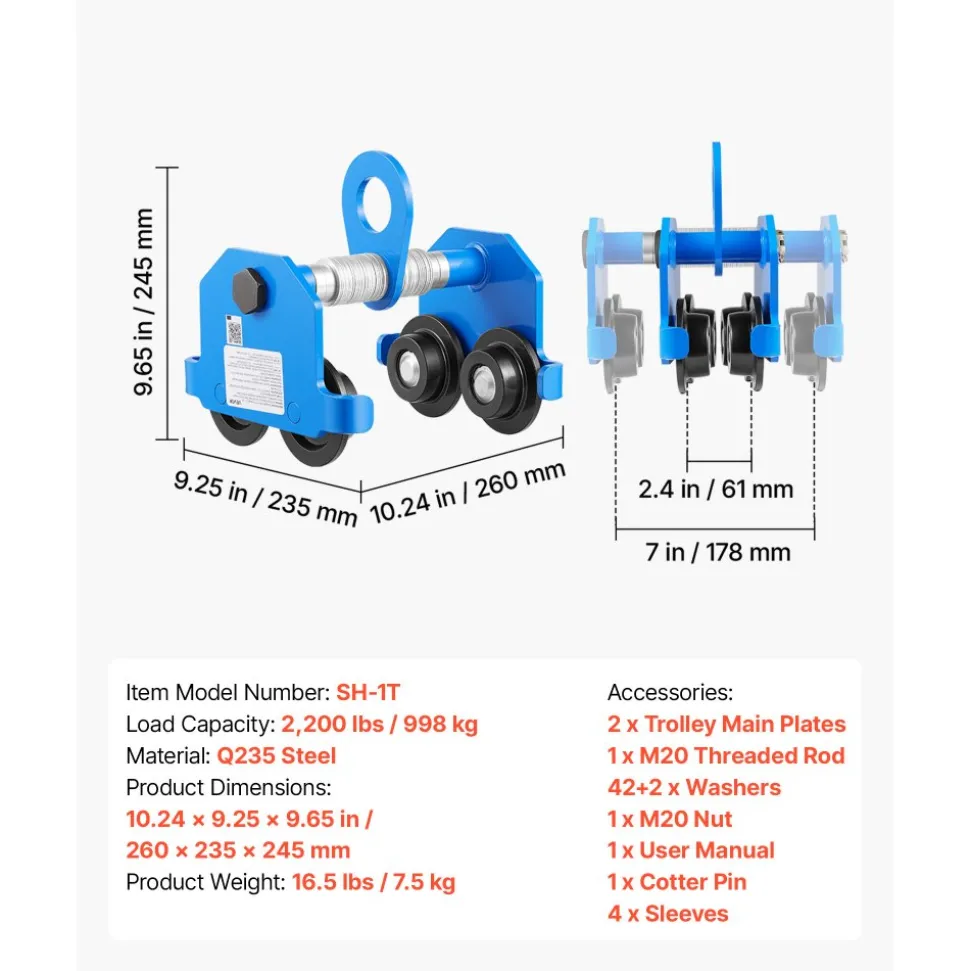

Adjustable 2.4″ to 7″ Width Fits Various I-Beam Sizes

Instead of being limited to a single set beam size, this I beam hand pushed trolley can accommodate a variety of I-beam and H-beam configurations by adjusting over a flange width range of 2.4″ to 7″ (about 61-178mm). Users can eliminate play or looseness when a trolley is mismatched with a beam flange that is too narrow or too wide for its default configuration by adjusting spacers and sleeves to provide a secure, snug fit specific to their installed beam width.

This flexibility is important for shops or facilities that have different beam diameters across different work areas, or for those buying equipment without knowing the specific beam configuration they will be working with in advance. This versatile range allows for straight and curved I-beam installation across a wider range of real-world setups. A trolley that is not constrained to a single fixed width will be mismatched on any beam outside of that strict specification.

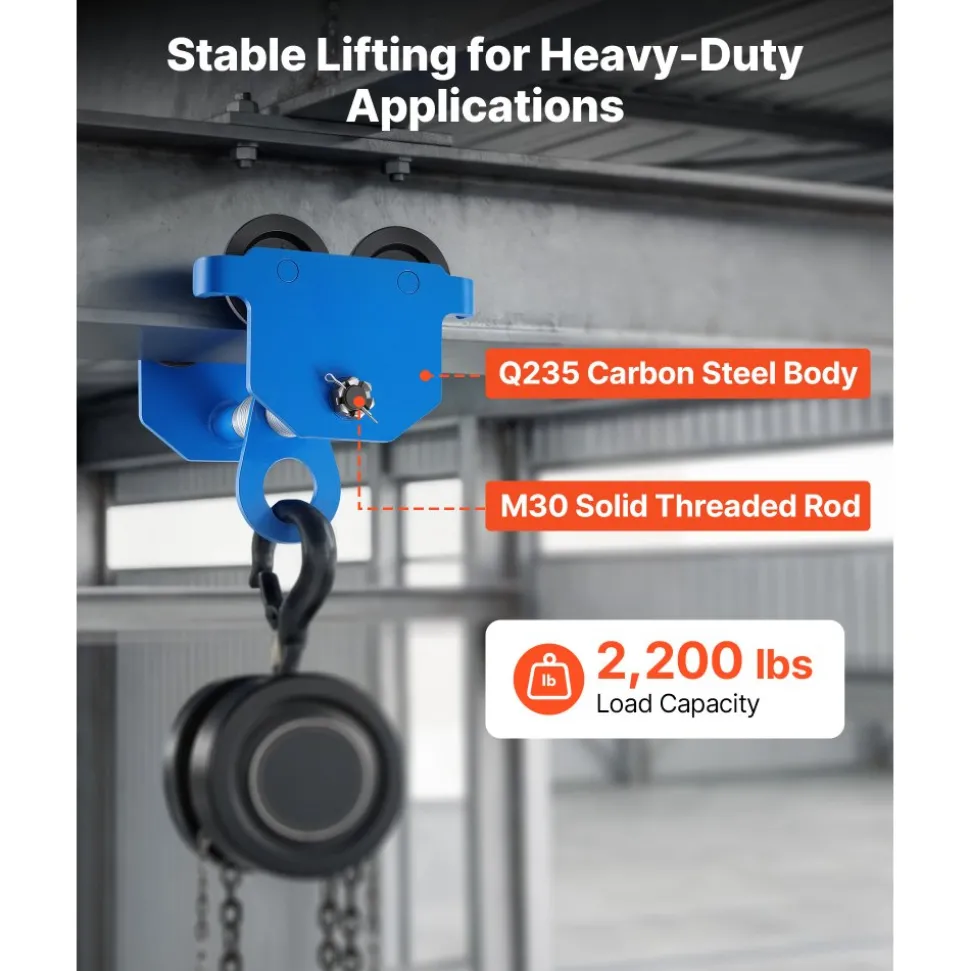

Q235 Carbon Steel Body Reduces Deformation Under Load

This I beam hand pushed trolley is made of Q235 carbon steel. It is designed to withstand structural stresses and deformation during lifting operations at or near its full 2200 lb rated capacity. Structural steel grade Q235 is frequently used for load-bearing industrial equipment in manufacturing, construction, and material-handling applications because of its strength and dependability under sustained mechanical loads.

The choice of material directly affects long-term safety and reliability. A trolley body that deforms or distorts with frequent heavy use increases the risk of operation and the chance of early equipment failure. Such behavior endangers the safety of the goods being lifted. The Q235 steel structure is designed to maintain its structural integrity over several lifts and not to degrade with accumulated stress. The failure mode is dangerous, particularly when lifting overhead, as structural fatigue may be unseen until the structure fails.

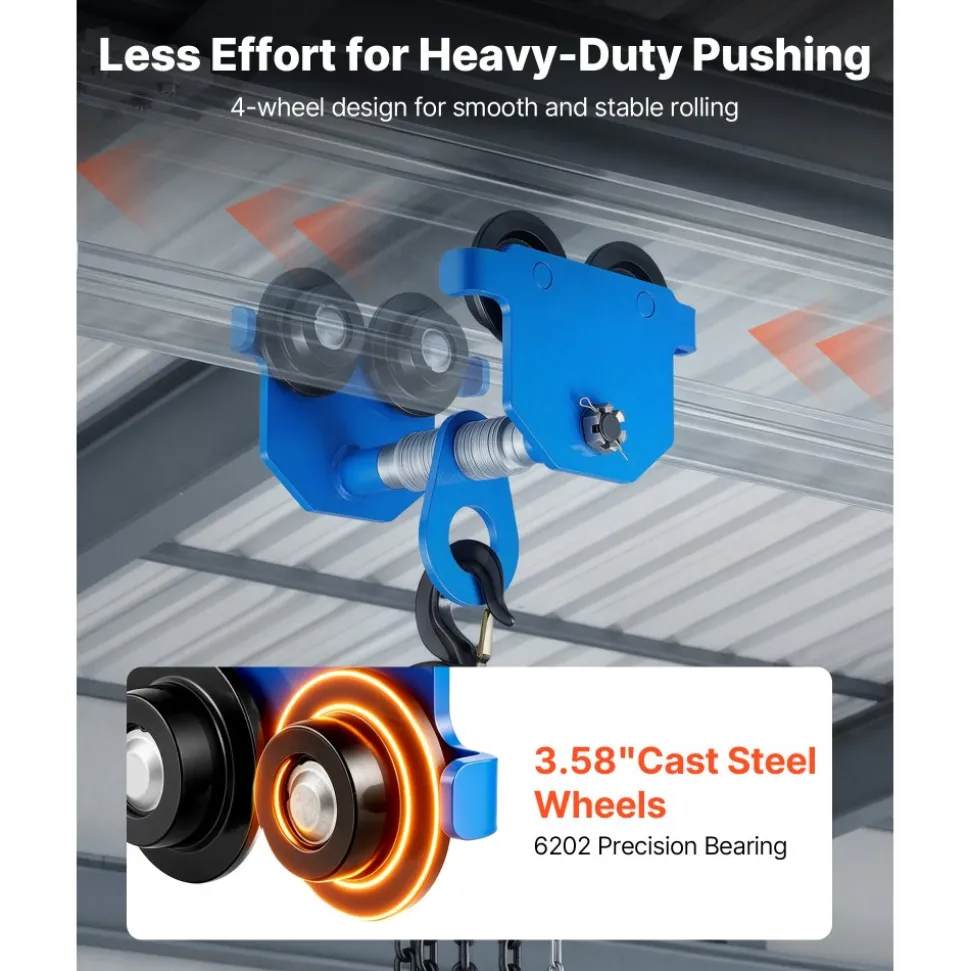

Large-Diameter Cast Steel Wheels for Smooth Rolling

Large-diameter cast-steel wheels with high-quality bearings are used in this I beam hand pushed trolley to minimize rolling resistance and sticking. A poorly designed wheel-and-bearing system can turn a routine repositioning task into a truly challenging physical effort. This is especially true for a manually pushed trolley, where excessive rolling resistance translates directly into the physical effort required from the operator to move a loaded trolley along the beam.

When transferring loads closer to the trolley’s maximum rated capacity, smooth, low-resistance rolling becomes especially crucial because any additional friction increases the effort required to push the load. Additionally, the jerky or uneven rolling motion that can occur with lower-quality wheel and bearing combinations under heavy load, increasing operator fatigue and the risk of losing control of a suspended load mid-movement, is reduced by the precision bearing construction, which promotes more consistent, predictable movement.

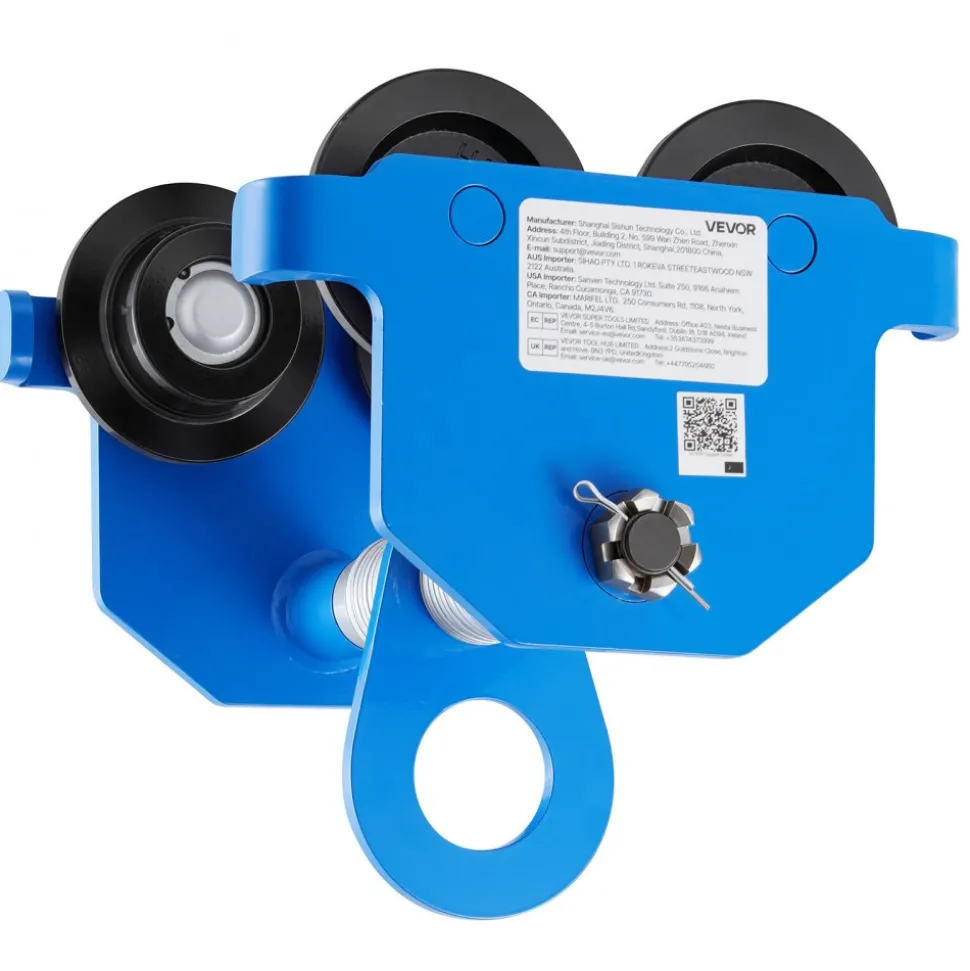

Widened Side Plates Protect Wheels and Track from Impact

The trolley has widened side plates to cushion impacts during travel, protect the wheel assembly, and reduce wear on the rail or beam track. This double protection is necessary to ensure the equipment’s long-term durability when the trolley and beam track are repeatedly stressed during regular operation. Damage to either part can eventually impact performance and safety, especially in heavy traffic industrial environments where the trolley is utilized every day.

The broader side plates also contribute to a longer beam track life by minimizing damage to the rail edges, which is significant for facilities where replacing or repairing beam track would be costly and disruptive to operations. Such a protective design extends the service life of the I-beam hand-propelled trolley and the fixed-track infrastructure on which it operates, thereby reducing long-term maintenance costs that would otherwise be incurred from repeated impact wear on unprotected wheel and track surfaces.

16.5 Lb / 7.5 Kg I Beam Hand Pushed Trolley for Multi-Use Applications

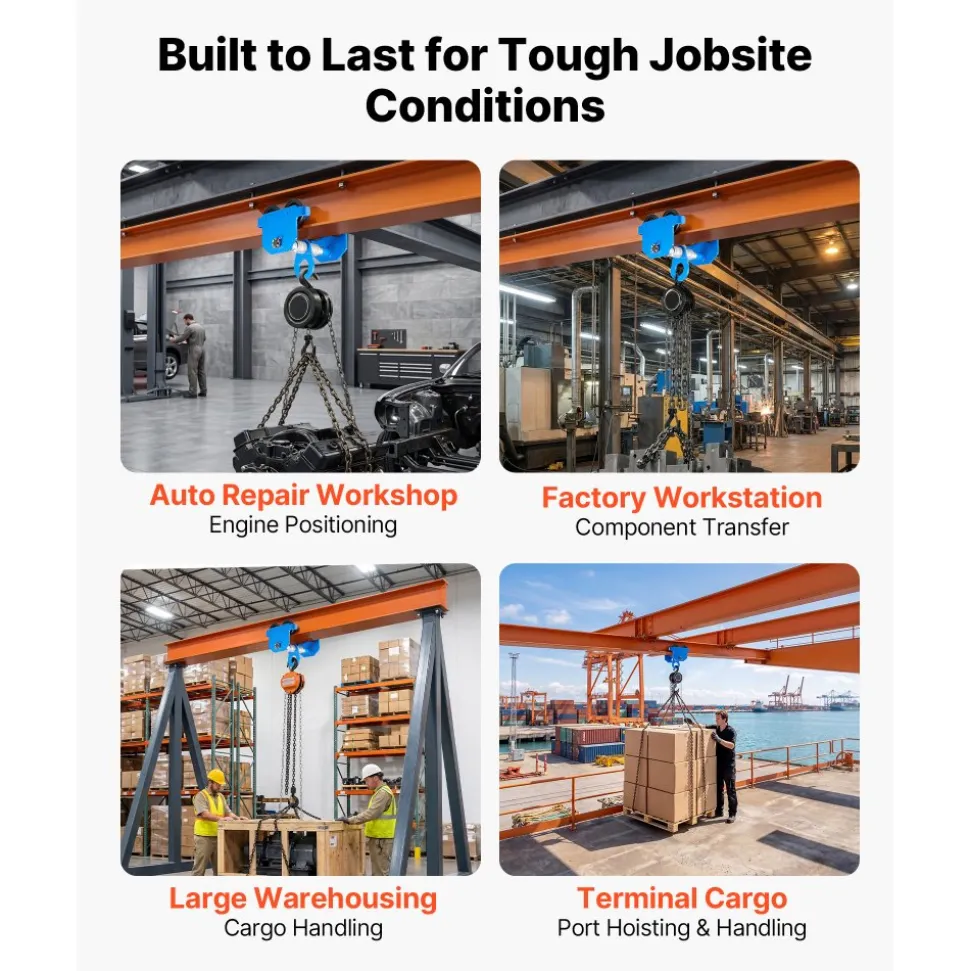

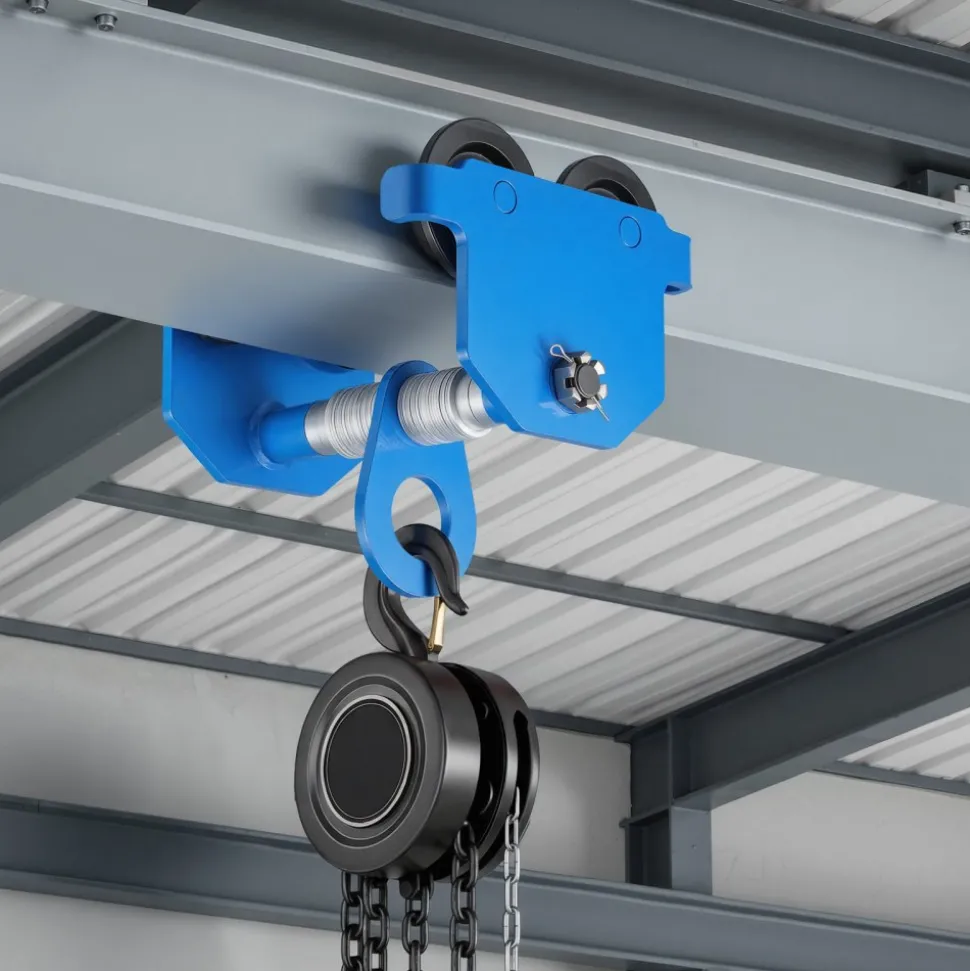

Garage engine lifting, heavy equipment repositioning, warehouse item handling, and manufacturing line assembly support are just a few of the uses for this I-beam hand-propelled trolley. Despite its considerable 2200 lbs load rating, the trolley itself is manageable to handle and install at 16.5 lbs (7.5 kg) and has compact dimensions of 10.24 x 9.25 x 9.65 in. This means that setup and mounting don’t require heavy equipment or a multi-person team, only to position the trolley itself.

A single I beam hand pushed trolley can support engine work in a garage setting one day and reposition heavy equipment in a warehouse the next, thanks to its versatility across use cases. This eliminates the need for separate specialized equipment for each unique application. This cross-application versatility enables true equipment consolidation for shops and facilities managing diverse lifting and repositioning demands across multiple projects, rather than a narrowly single-purpose tool that sits idle outside its one unique activity.
