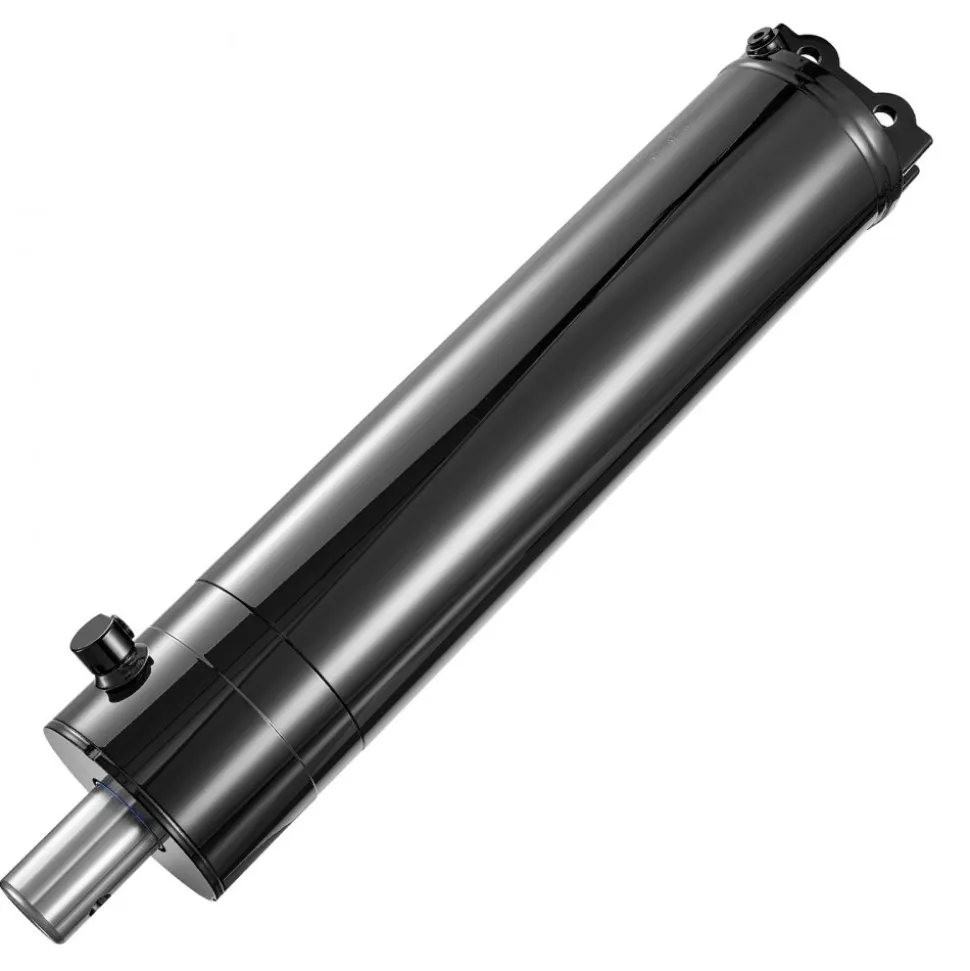

VEVOR Double Acting Hydraulic Cylinder, 5″ Bore x 20″ Stroke, Max 4500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 0.63″ Pin Hole & SAE #6 Port for Agricultural Machinery
Original price was: $274.00.$136.89Current price is: $136.89.

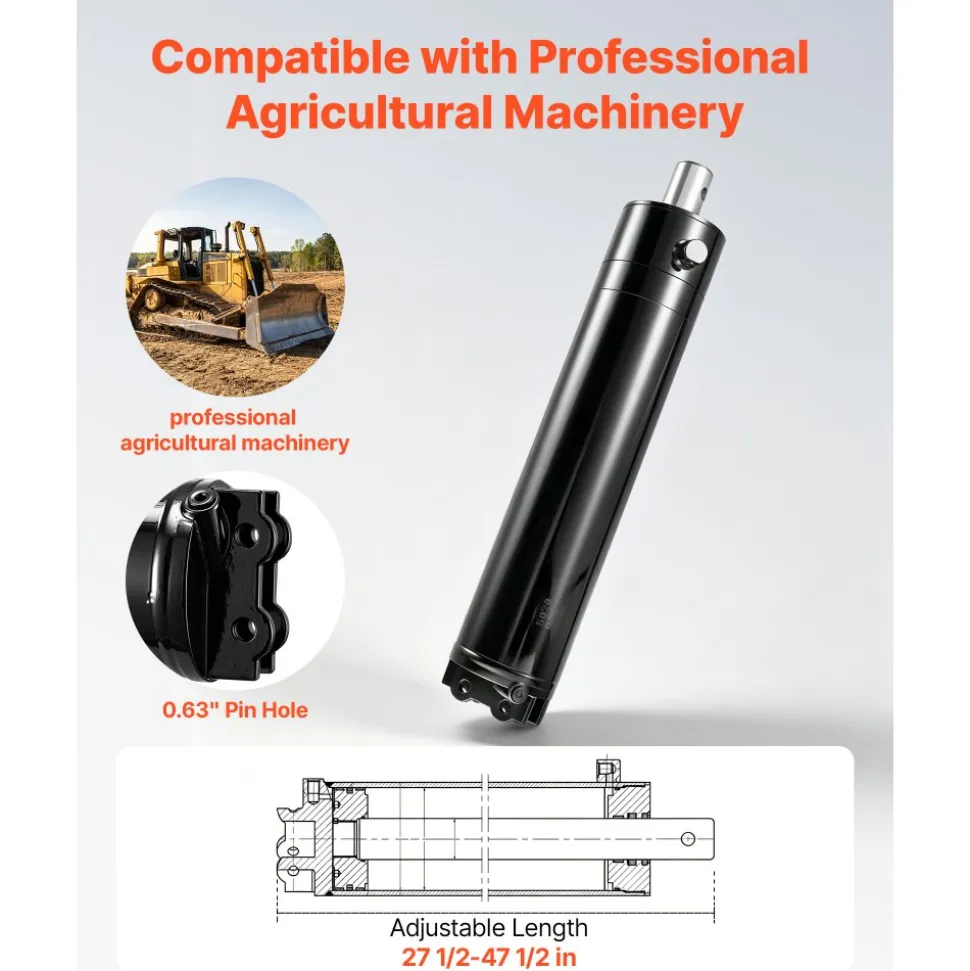

- Key Specifications: Bore: 5 in (127 mm), Stroke: 20 in (508 mm), Retracted Length: 27.5 in (698.5 mm), Extended Length: 47.5 in (1206.5 mm), Port Size: SAE #6, Pin Hole Diameter: 0.63 in

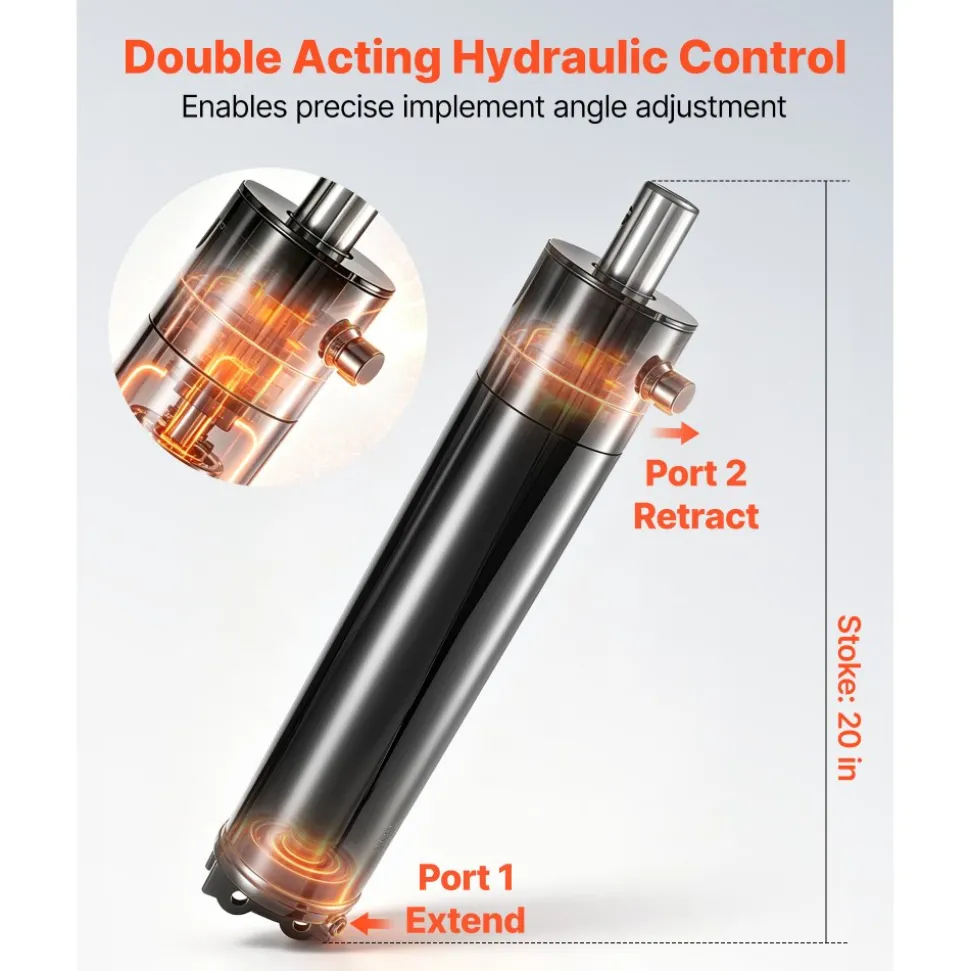

- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation

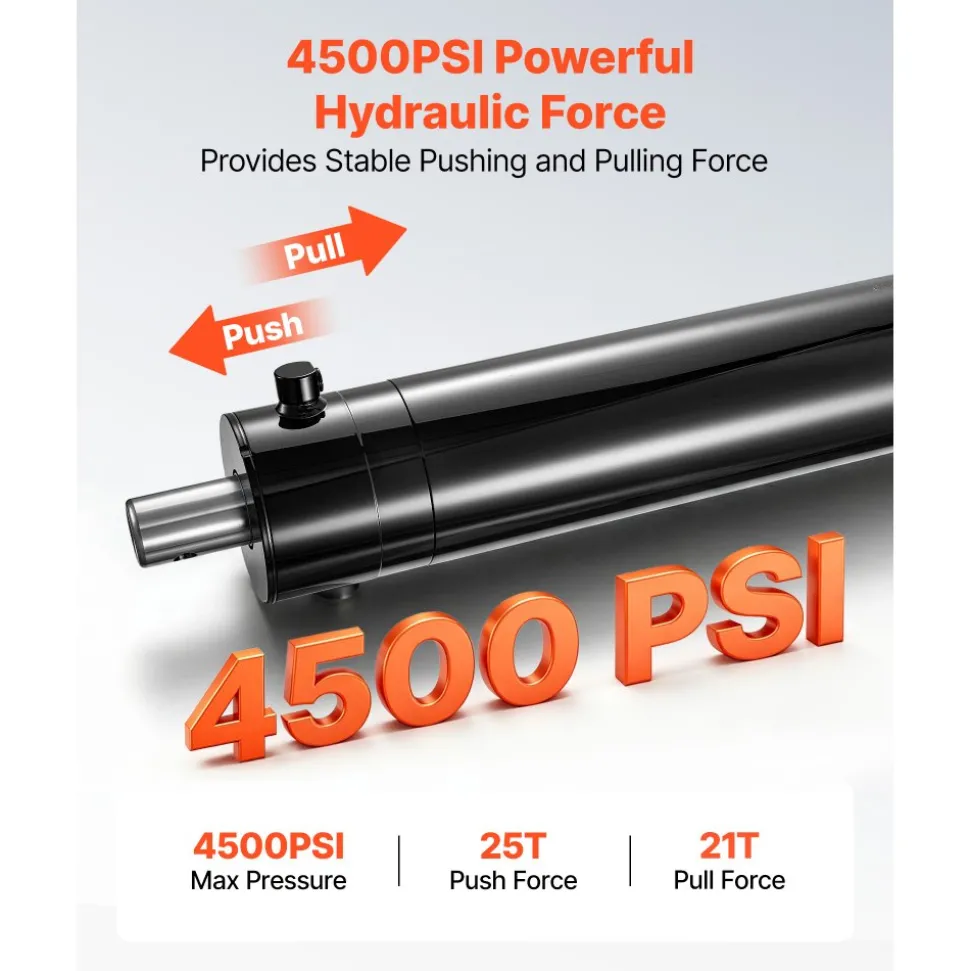

- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 4500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency
- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 28219 lbs (12.8 Ton) column load capacity while delivering 25 Ton push force and 21 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications

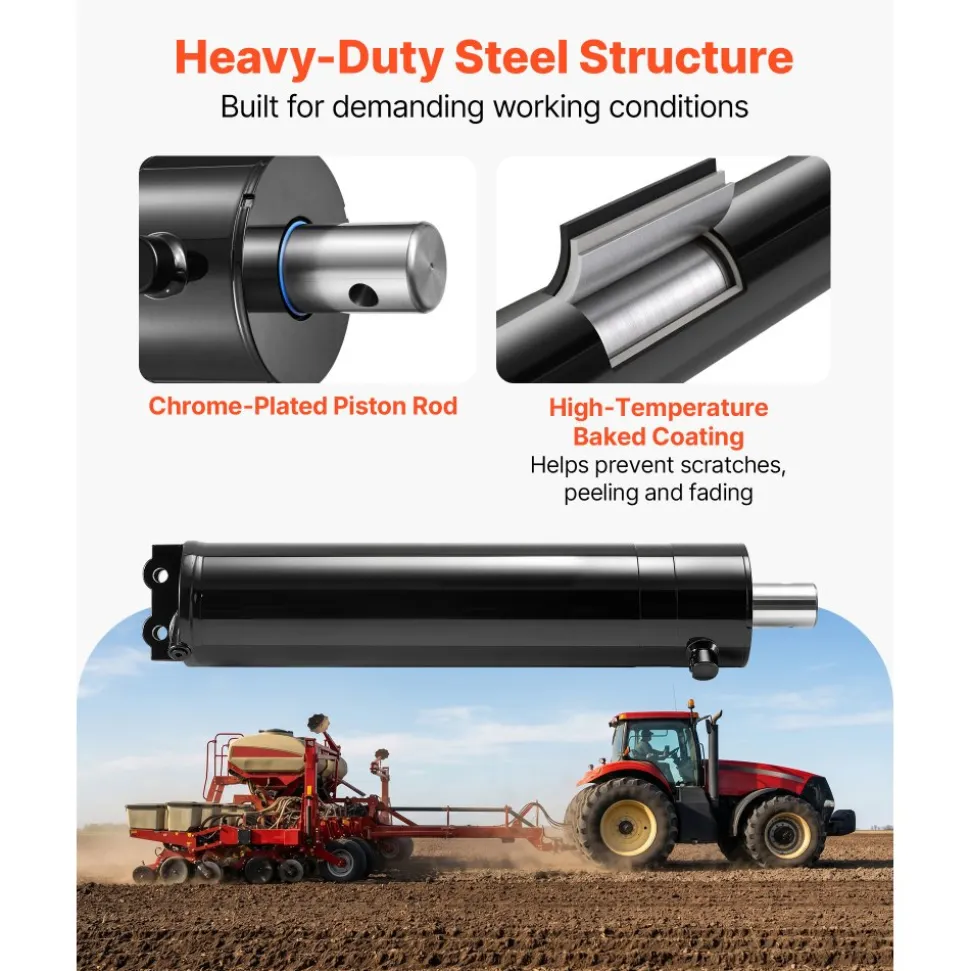

- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions

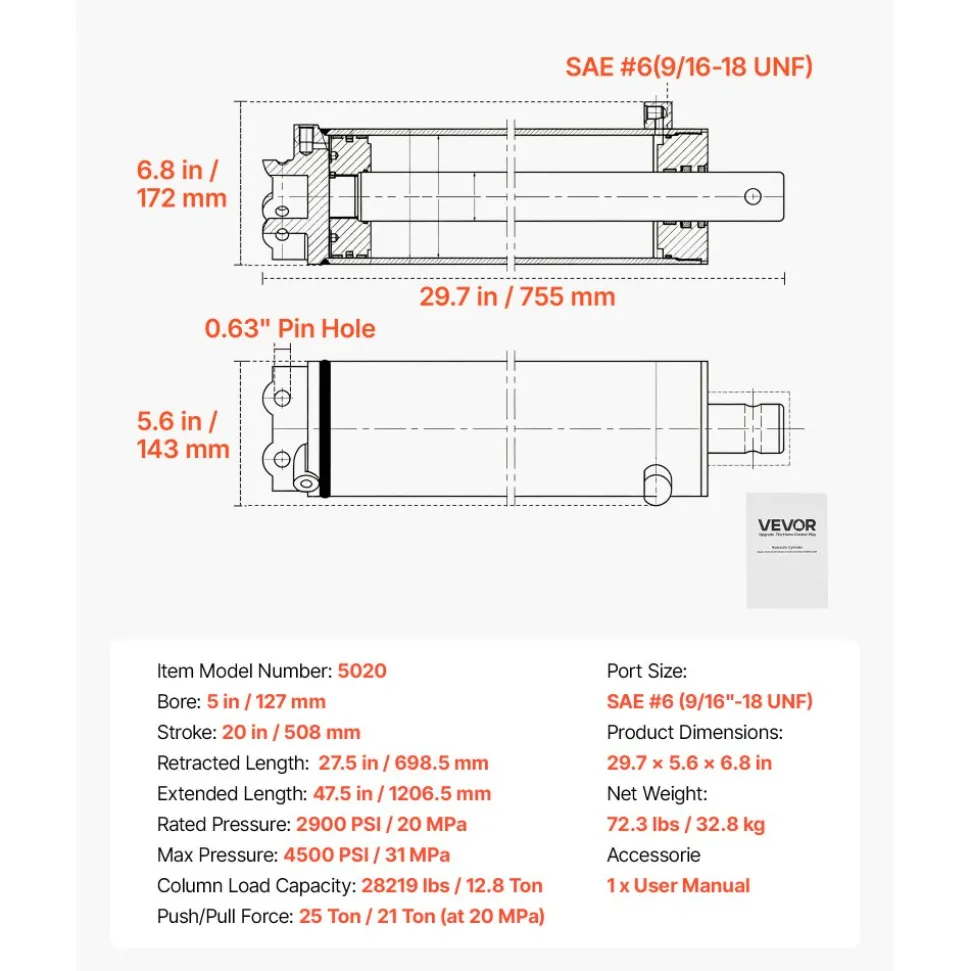

- Item Model Number
- 5020
- Bore
- 5 in / 127 mm
- Stroke
- 20 in / 508 mm
- Retracted Length
- 27.5 in / 698.5 mm
- Extended Length
- 47.5 in / 1206.5 mm
- Rated Pressure
- 2900 PSI / 20 MPa
- Max Pressure
- 4500 PSI / 31 MPa
- Column Load Capacity
- 28219 lbs / 12.8 Ton
- Push/Pull Force
- 25 Ton / 21 Ton (at 20 MPa)
- Port Size
- SAE #6 (9/16″-18 UNF)
- Product Dimensions
- 29.7 x 5.6 x 6.8 in
- Net Weight
- 72.3 lbs / 32.8 kg
Pro-level performance without the pro-level cost
With high-pressure capacity and powerful hydraulic force, this double acting hydraulic cylinder delivers smooth, powerful push-pull motion to help agricultural equipment operate more efficiently.
Key Features
Chrome-Plated Piston Rod
Resists wear and corrosion for smoother movement and longer service life.

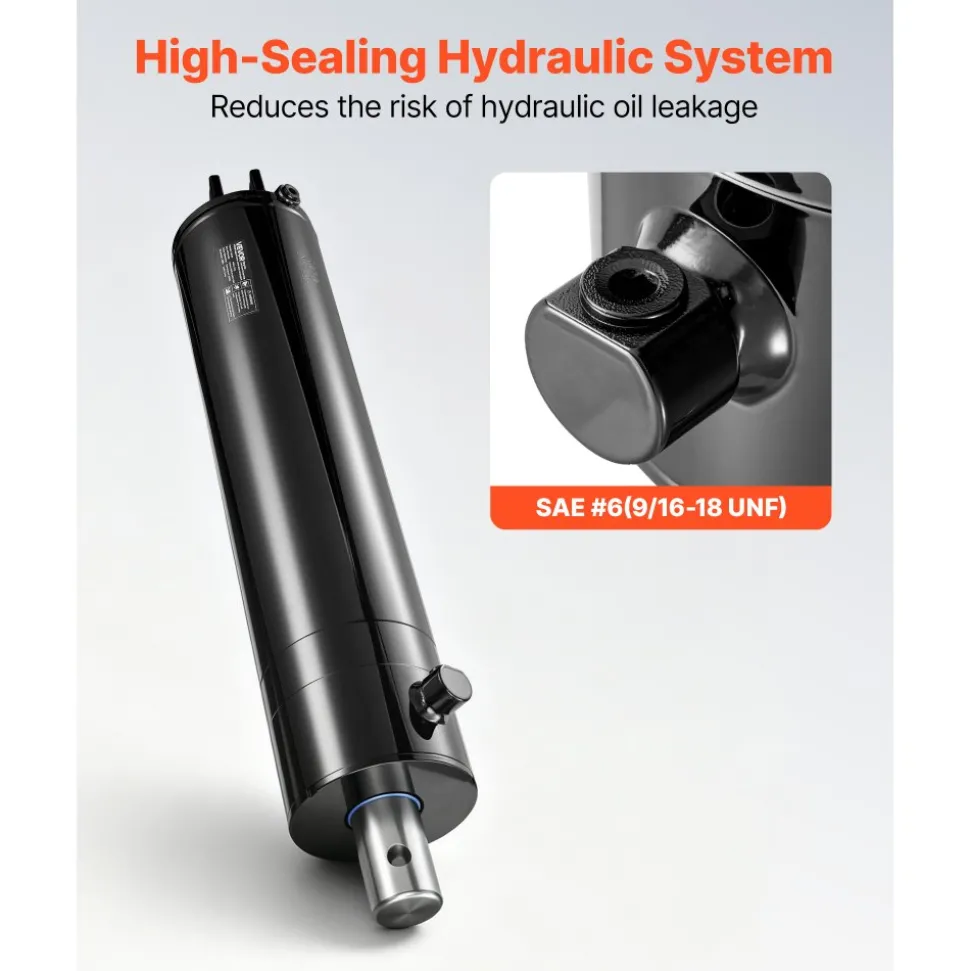

High-Performance Sealing System
Reduces hydraulic fluid leakage and maintains stable pressure output during operation.
High-Strength Construction
Built with durable steel to handle heavy-duty agricultural and industrial applications.
