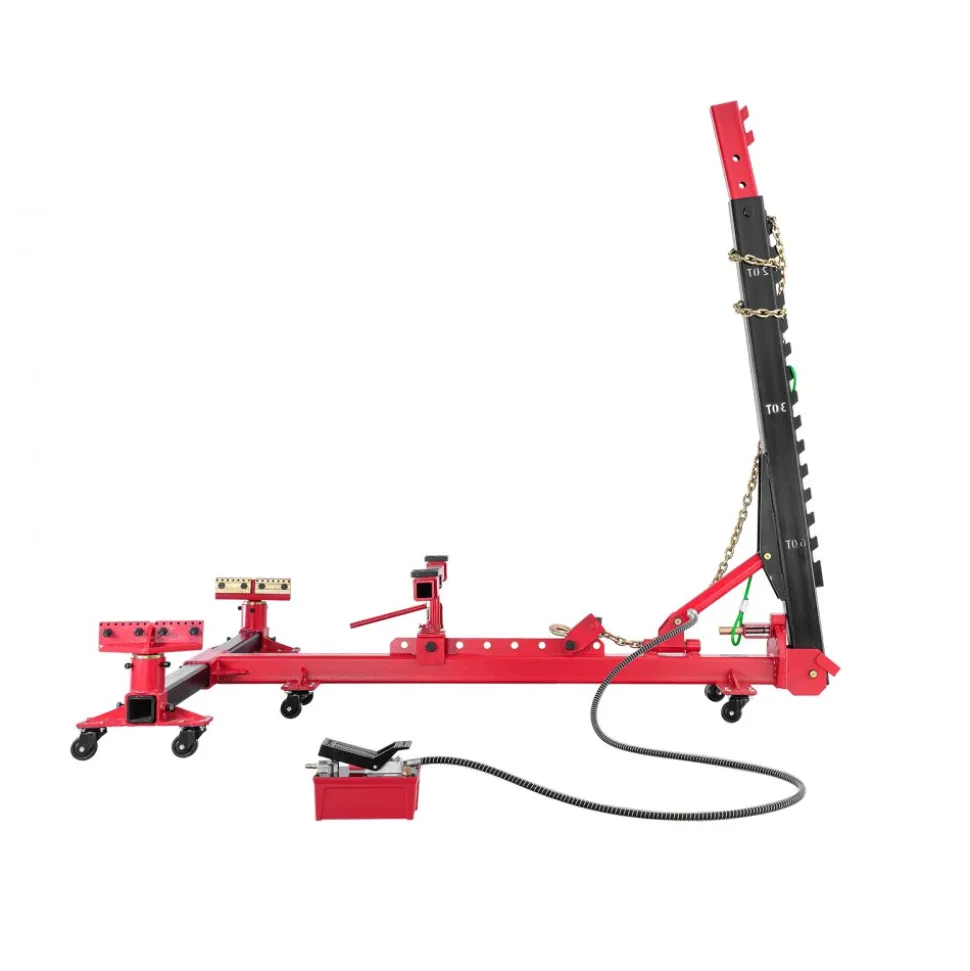

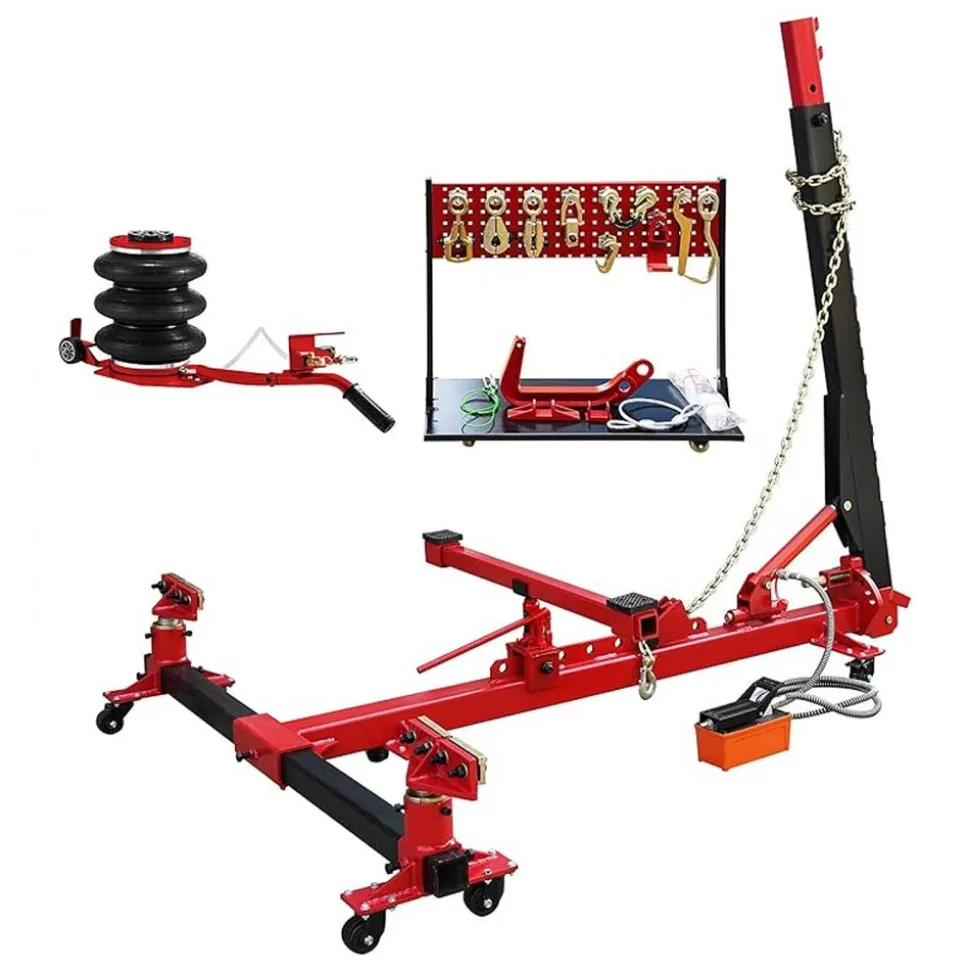

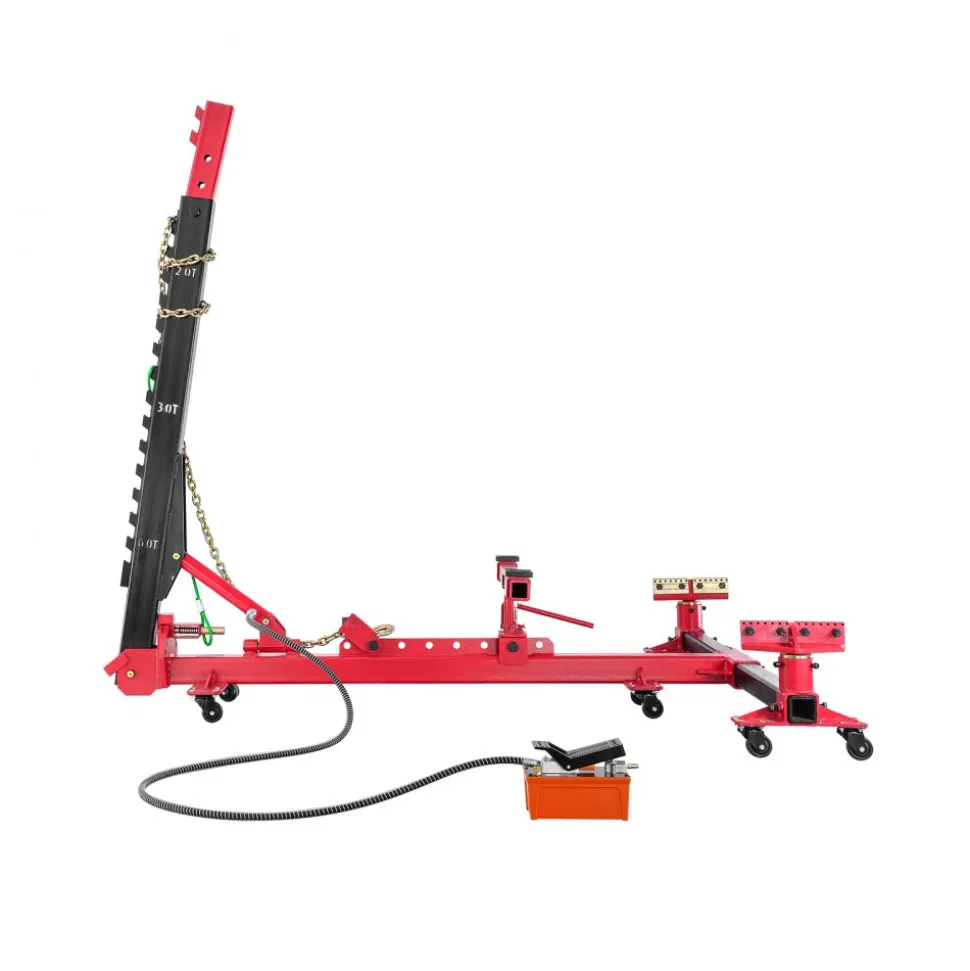

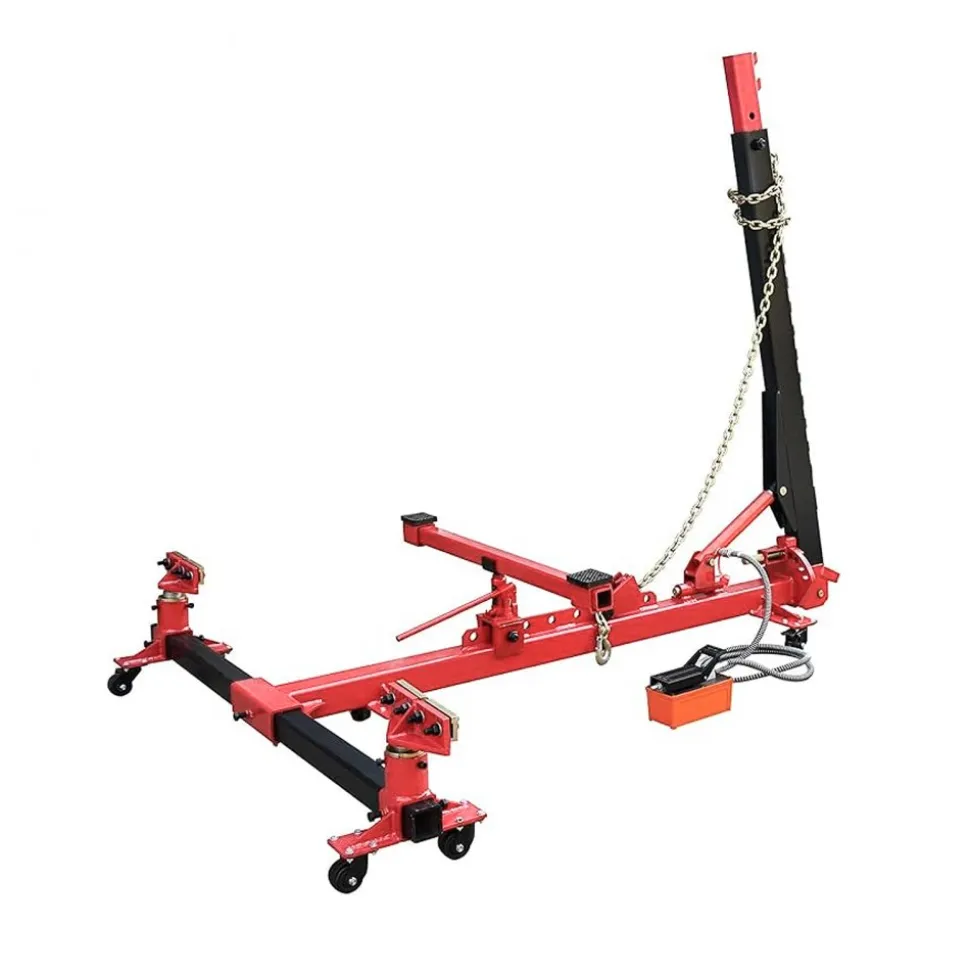

VEVOR Auto Body Frame Straightener, 6 Ton Tension Car Frame Puller, Auto Body Frame Machine with Swivel Post, Hydraulic Foot Pump, Airbag Jack and Pulling Clamp Set, for Auto Body Frame Repair
$130.99

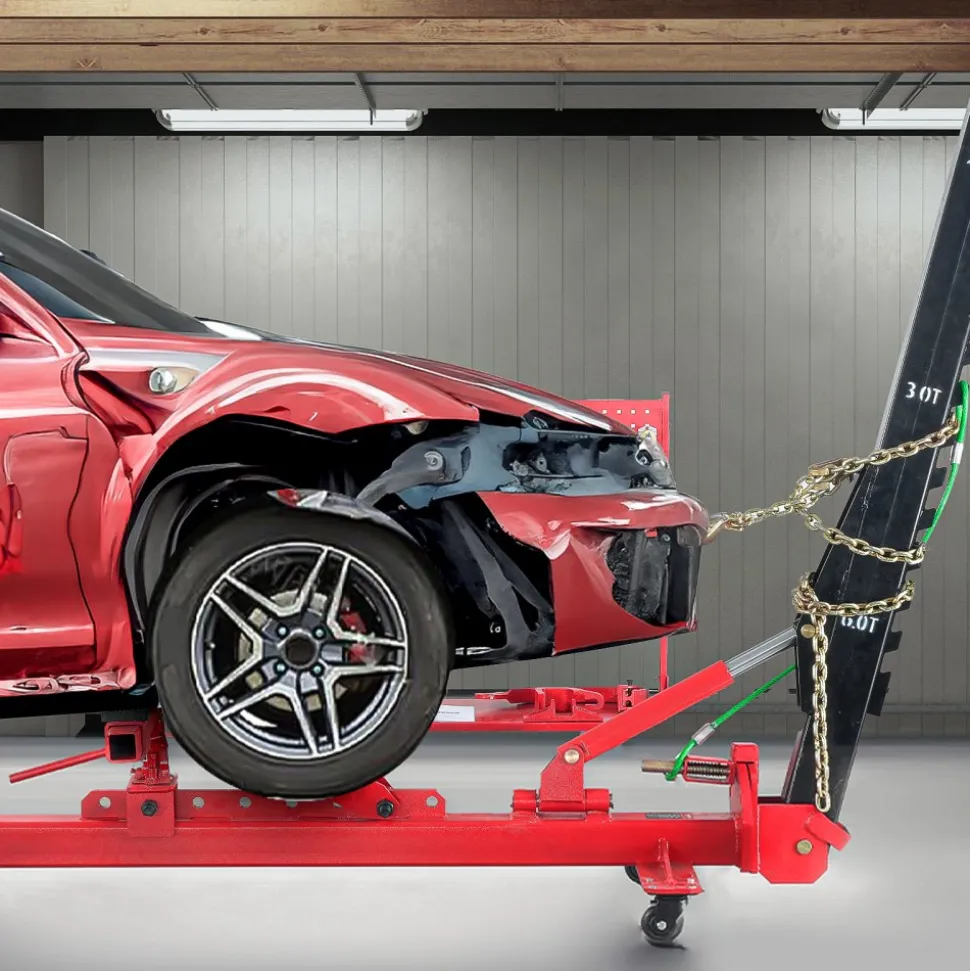

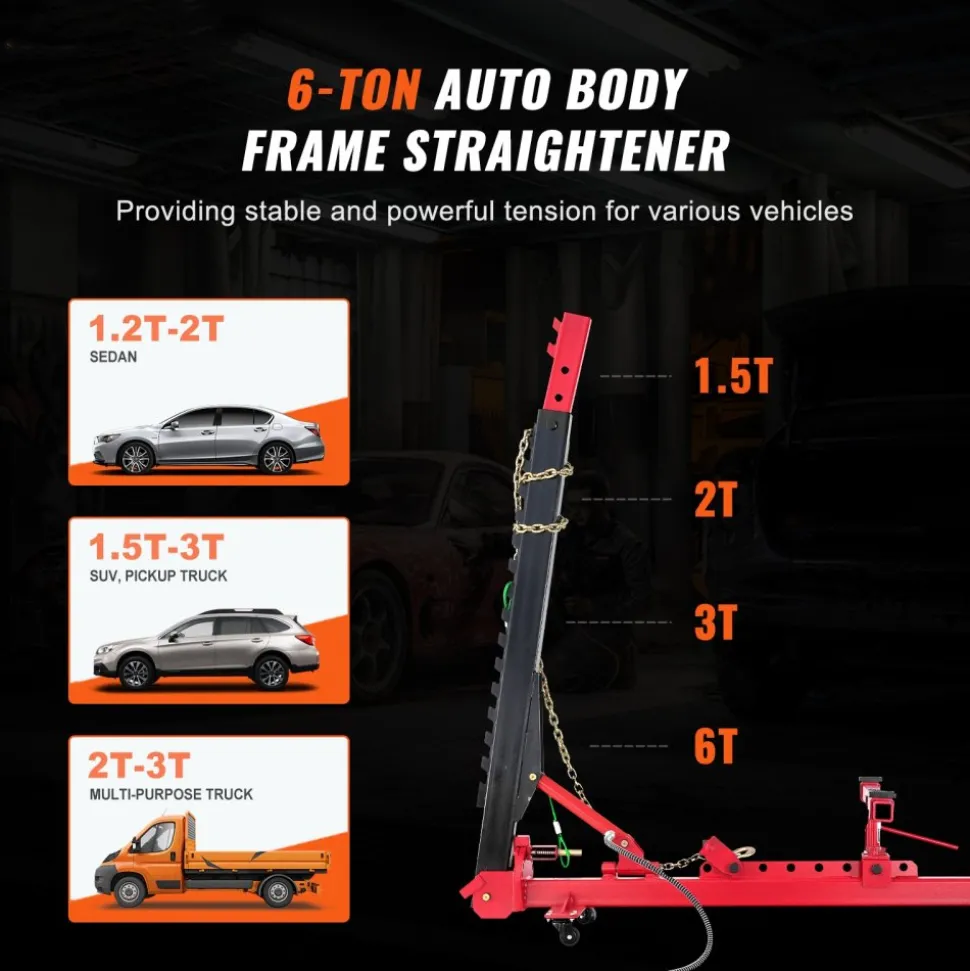

- 6-Ton Strong Tensile Force: The auto body frame straightener features a robust 7-ton hydraulic cylinder and a hydraulic air pump, delivering exceptional tensile strength for repairing vehicle body dents and deformations. It includes a 3m iron chain for high-strength tension and stability, ensuring a reliable repair process.

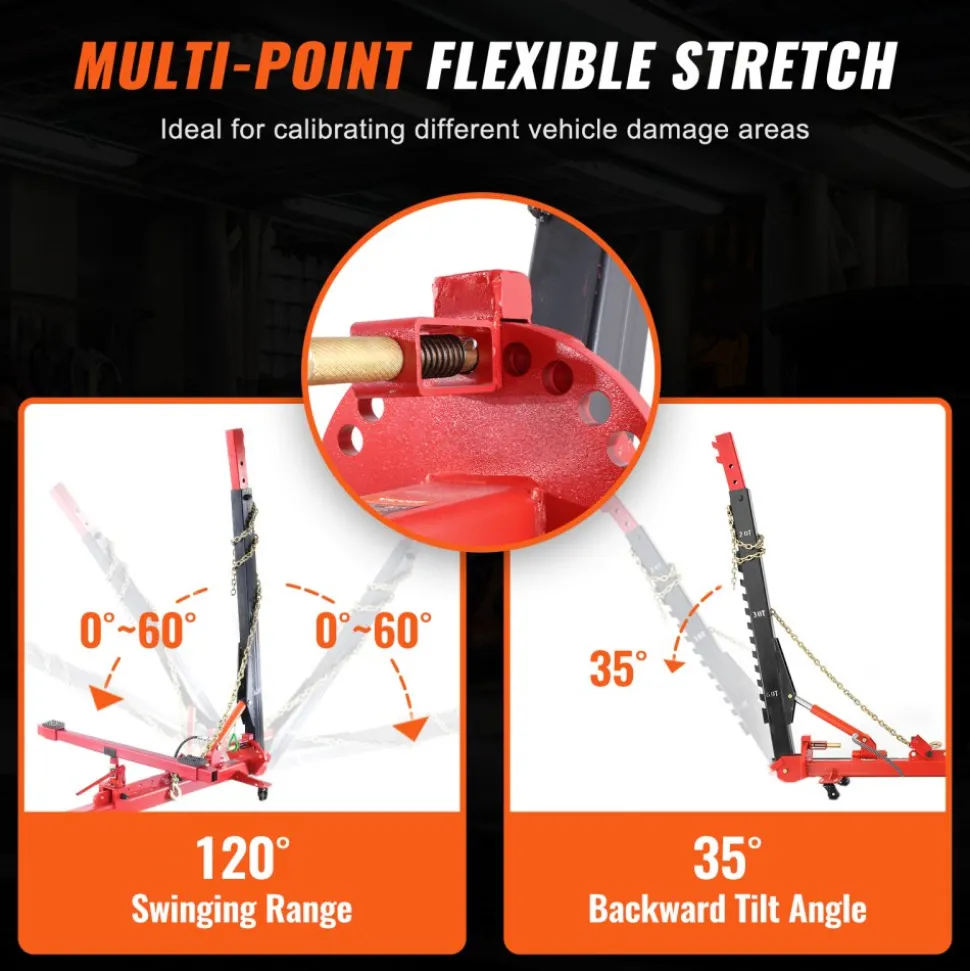

- Flexible Adjustable Tower Column: With a swing range from -60 to +60 degrees and a maximum rear angle of 35 degrees, the adjustable auto puller column caters to various vehicle parts, including side doors and chassis. Its 8-hole pin design ensures adaptability for different vehicle types and maintenance needs.

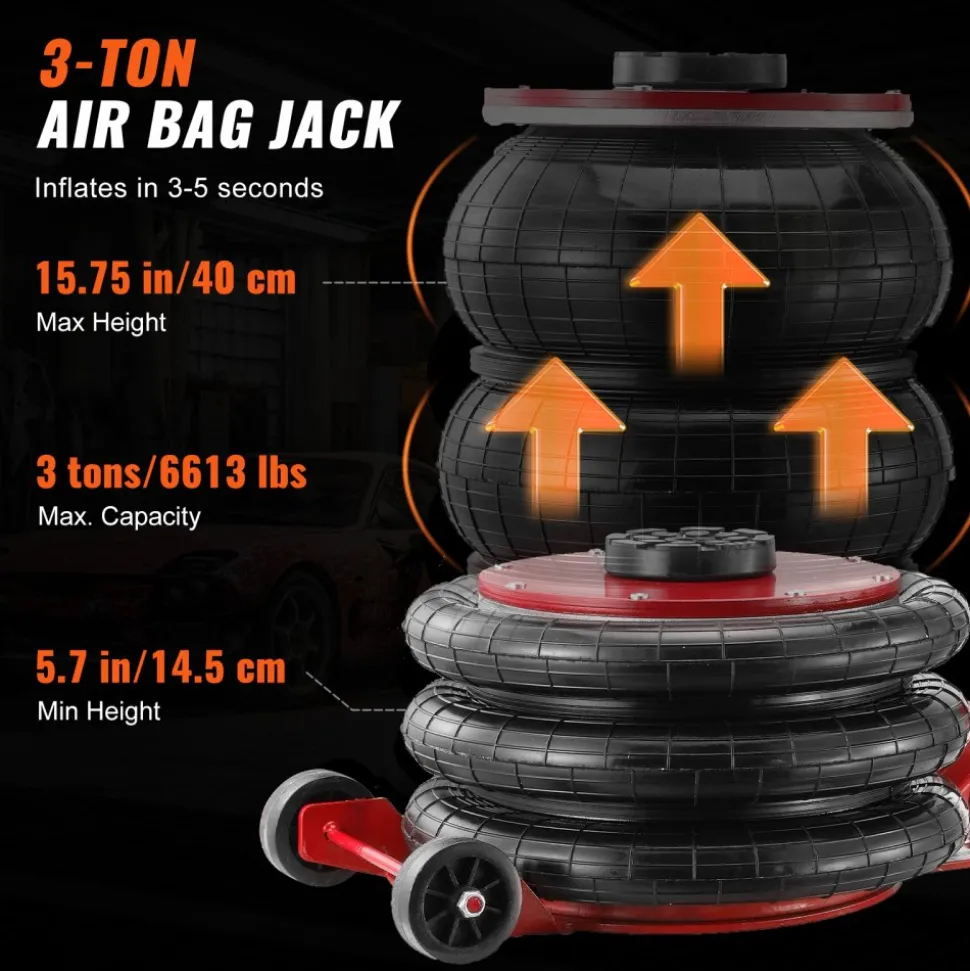

- 3-Ton Airbag Jack: Our auto body frame puller is equipped with a 3-ton airbag jack capable of lifting 6,600 lbs between 5.7″ and 15.75″ within 5 seconds. Constructed from durable rubber and stainless steel, this airbag jack features an ergonomic long handle and wheels for easy positioning under vehicles.

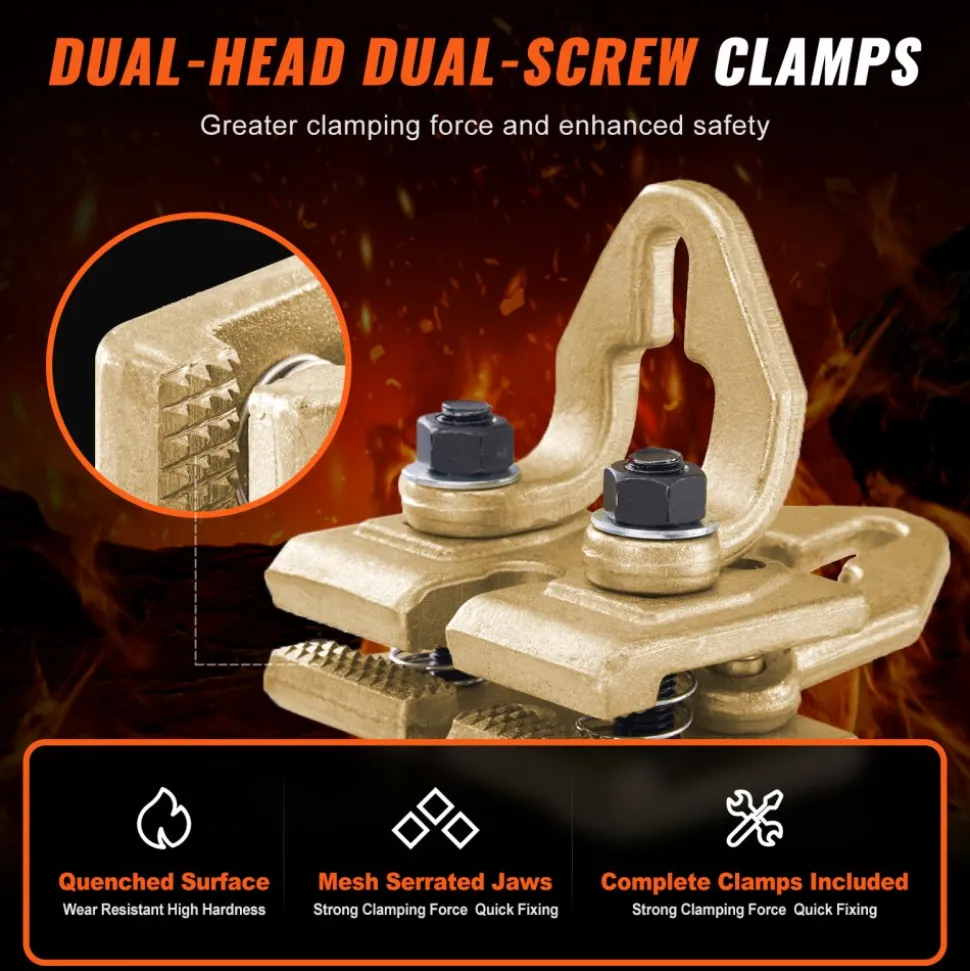

- Durable Double-Screw Clamps: Featuring a quenching high-frequency treatment, the frame puller clamp boasts hardness and wear resistance. The double screw design enhances clamping force and stability, supported by a complete set of frame puller auto body tools for efficient maintenance.
- Enhanced Mobility: The main frame and beam vice are mounted on 8 smooth casters, providing easy adjustment and stable support during repairs. With a 2.95″ caster diameter, this frame puller auto body is ideal for working on SUVs, cars, trucks, and other vehicle models, ensuring mobility and stability.

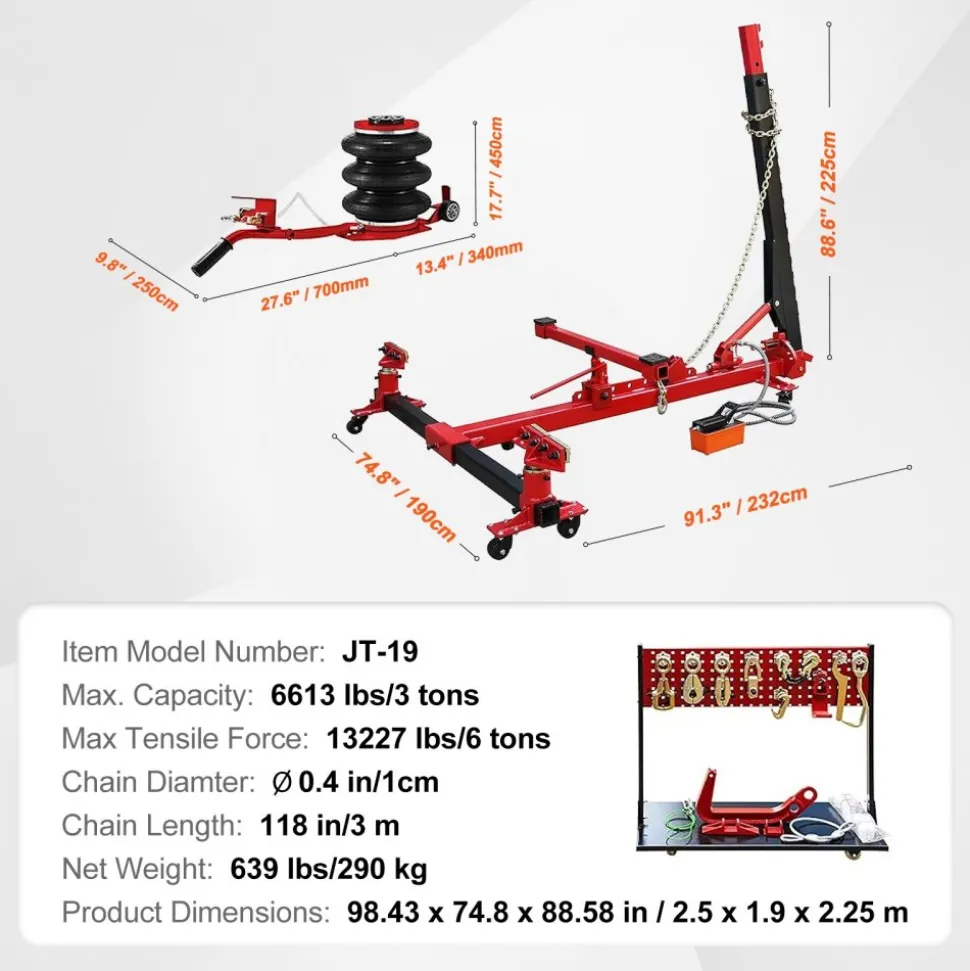

- Item Model Number
- JT-19
- Net Weight
- 639 lbs/290 kg
- Product Dimensions
- 98.43 x 74.8 x 88.58 in / 2.5 x 1.9 x 2.25 m
- Load Capacity
- 6613 lbs / 3 ton
- Max. Tension
- 13227 lbs / 6 ton
- Material
- Q235B
- Number of Casters
- 8 pcs
- Caster Diameter
- φ2.95 in/75 mm
- Column Swing Angle
- -60°，-45°，-30°，-15°，0°，15°，30°，45°，60°
- Column Rear Tilt Angle
- 35°
- Chain Diameter
- ∅0.4 in / 1 cm
- Chain Length
- 118 in / 3 m
- Load Capacity of Hook
- 6613 lbs / 3 tons
- Position Adjustment
- 8-hole

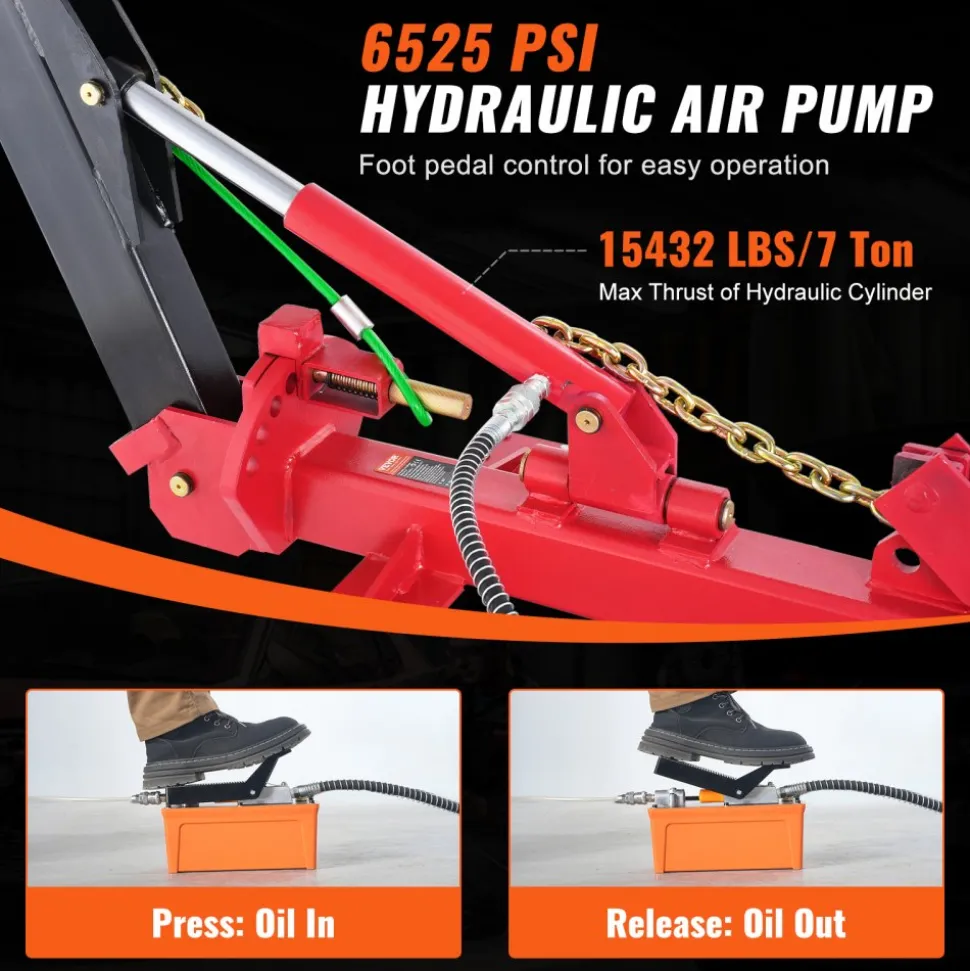

- Max Thrust of Hydraulic Cylinder
- 15432 lbs / 7 tons
- Max Pressure of Hydraulic System
- 45 MPa
- Air Supply Required
- 0.6-1 MPa
- Airbag Jack
- Working Pressure
- 0.8-1.0 MPa
- Load Capacity
- 6613 lbs / 3 tons
- Lifting Range
- 5.7-15.75 inches / 14.5-40 cm
- Material
- Rubber
- Product Dimensions
- 40.55 x 10.55 x 5.5 in / 103 x 26.8 x 14 cm (Uninflated)
- Net Weight
- 34.83 lbs/15.8 kg
