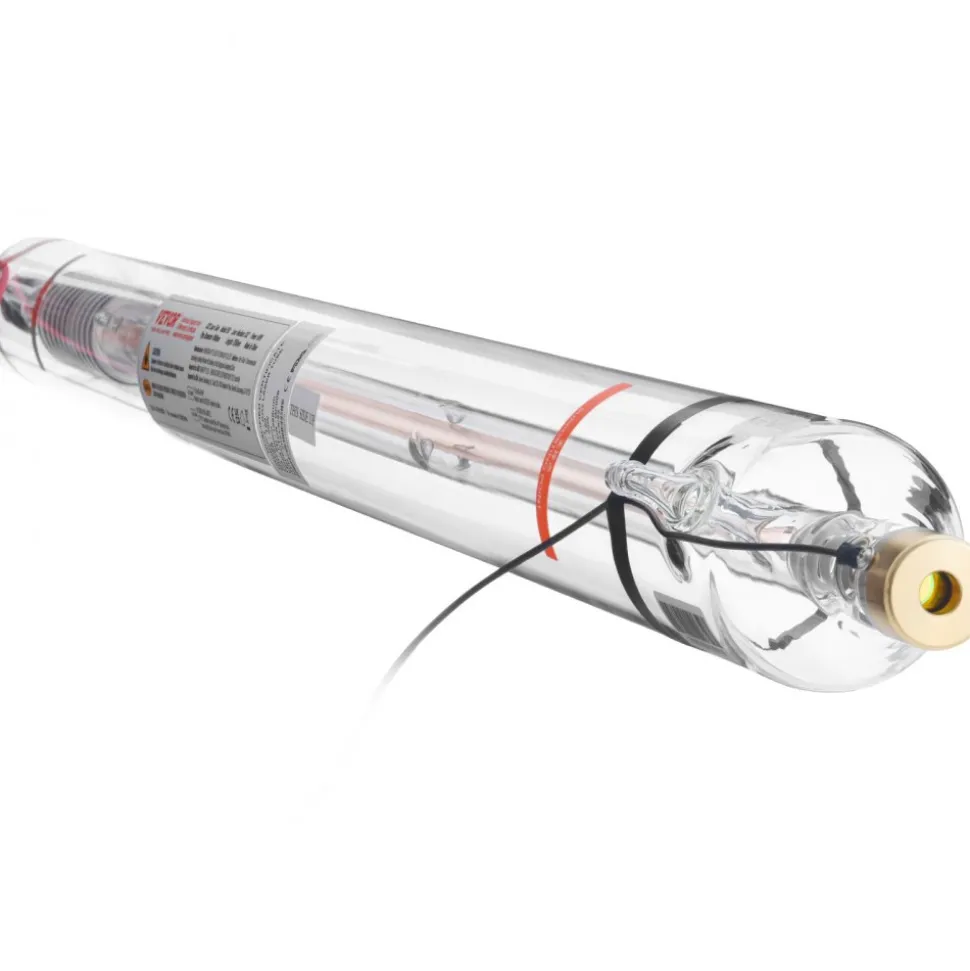

VEVOR 90W CO2 Laser Tube, 49.2 in (1250 mm) Length, 3.1 in (80 mm) Dia Borosilicate Glass Laser Cutter Tube with Metal Head, 10,000hr Wires Preconnected for Laser Engraver Engraving Cutting Machine

CO2 Laser Tube Replacement Delivers 90W Power with TEM00 Mode and 4–6mm Spot Diameter

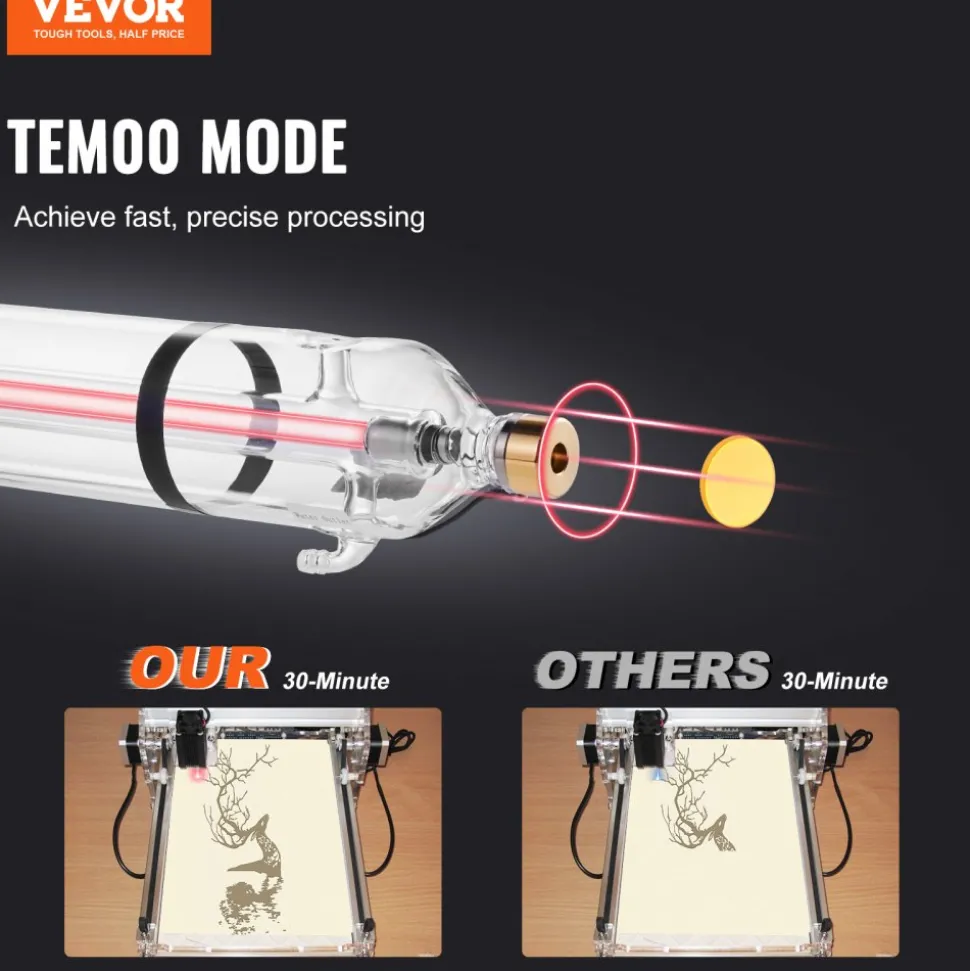

When in TEM00 mode, the VEVOR CO2 laser tube replacement has a power output of 90W. It is the best spatial beam configuration available in CO2 laser technology. In TEM00 mode, the beam profile is Gaussian, which means that the energy is concentrated at the center of the spot with the highest density and the least amount of divergence. It results in a focused light spot diameter of 0.16 to 0.24 inches (4 to 6 mm).

The high-energy-density output stays very stable throughout the entire operating cycle. It is very important for professional engraving and cutting, as the quality of the output depends directly on the beam’s consistency. Inconsistent beam profiles cause changes in cut depth, engraving contrast, and edge sharpness, thereby lowering the quality of the finished work. This tube maintains TEM00 mode during operation, enabling it to repeat the process.

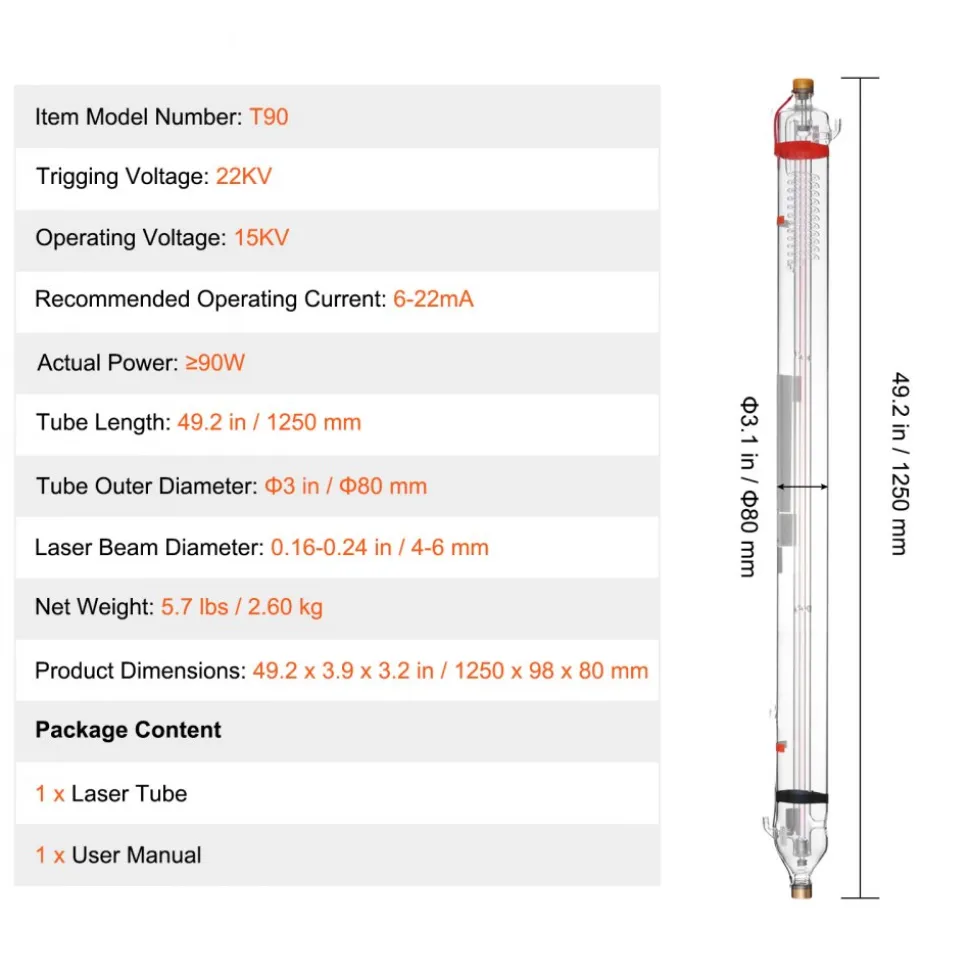

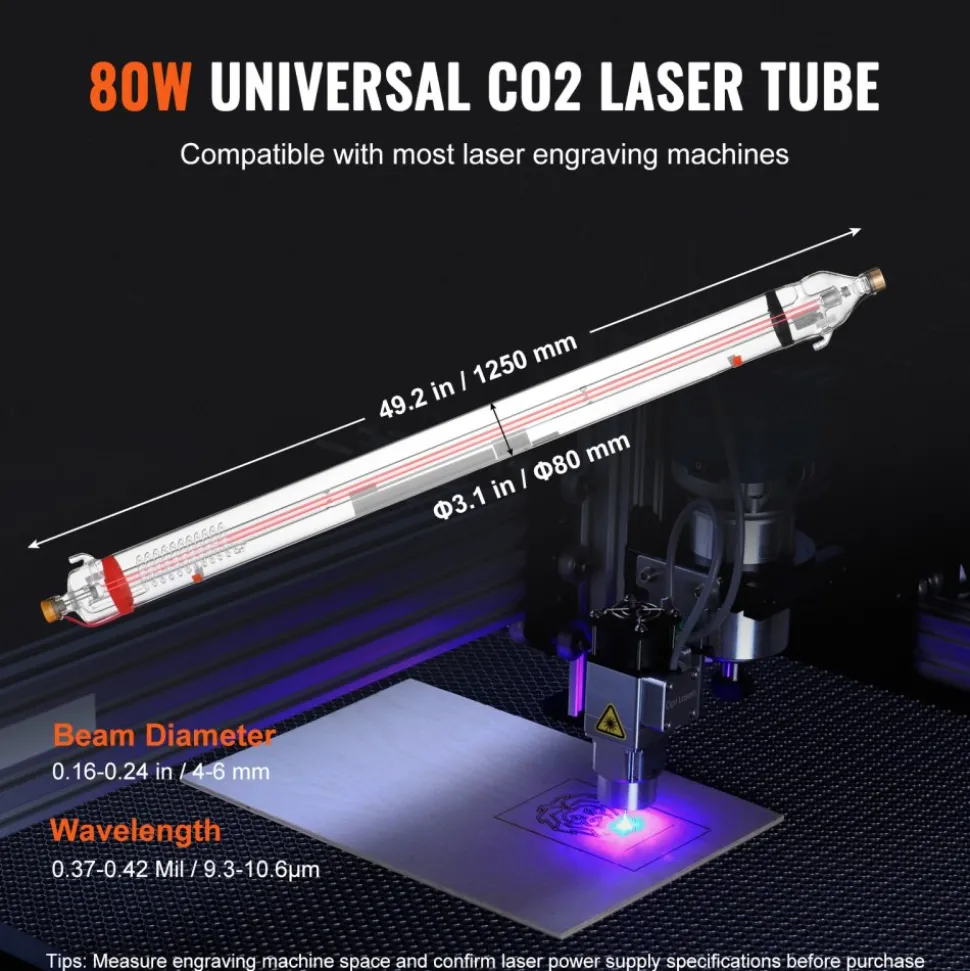

1250mm Length and 80mm Diameter CO2 Laser Tube Replacement Compatible with Multiple Machine Brands

The first thing that any CO2 laser tube replacement must do is fit physically. This one is 49.2 inches (1,250 mm) long and 3.1 inches (80 mm) in diameter, which meets the mounting requirements for most mid-range and professional CO2 laser engraving and cutting machines. This standardized form factor eliminates the guesswork of finding a replacement that fits a specific chassis without requiring any changes or adapter hardware.

The tube emits light in the standard CO2 laser wavelength band of 0.37 to 0.42 mil (9.3 to 10.6 μm). It is the range that optics, mirrors, and lenses in compatible machines from different manufacturers can use. Universal wavelength compatibility means the tube can be used with existing optical pathways without recalibrating the entire beam delivery system.

Borosilicate Glass Construction with 98% Lens Transmittance Rate and Sealed Gas Design

Borosilicate glass is used to make CO2 laser tubes because it can withstand thermal shock very well, which is the rapid temperature change that happens when the laser is firing and cooling down. Borosilicate glass, on the other hand, remains strong even when temperatures change significantly. It doesn’t crack or form micro-fractures that weaken the sealed gas envelope.

The output window transmittance is over 98%, indicating very little optical loss at any point where the beam passes through the tube’s end windows. It ensures that the rated 90W output reaches the workpiece rather than being absorbed or scattered within the tube. The completely sealed internal design keeps the gas from leaking out during transmission.

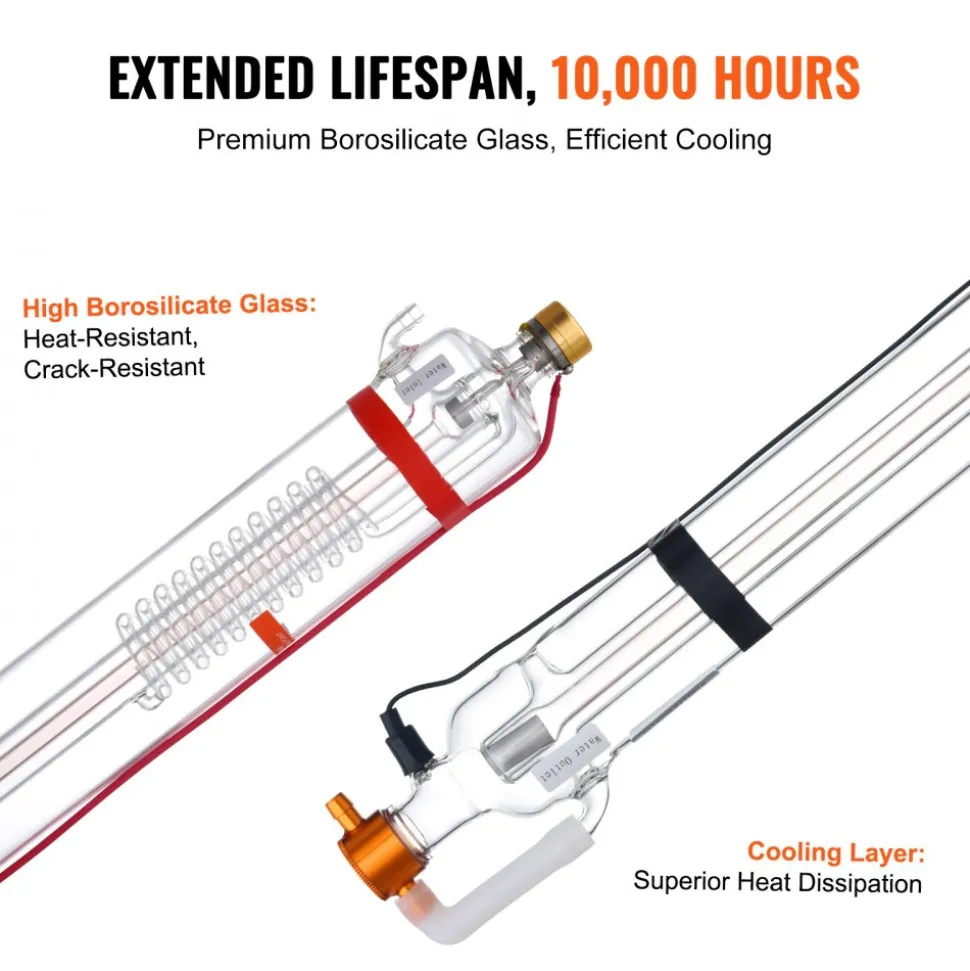

10,000-Hour Rated Service Life Ensures Long-Term Stable Operation for Laser Engravers

A rated service life of 10,000 hours is a significant commitment for any CO2 laser tube replacement, especially in production settings where the machine runs for long periods each day. 10,000 hours of use can correspond to more than 3 years of typical operation before it reaches the end of its rated service life.

For the tube to last as long as it is rated, it must work within its specified power and thermal limits. The sealed borosilicate design and stable beam mode help with this during normal use. Tubes that are overdriven, not cooled enough, or have dirty optics wear out faster than their rated life, no matter what. The 10,000-hour rating for this unit is a typical performance benchmark rather than a guaranteed maximum, provided it is installed and maintained correctly.

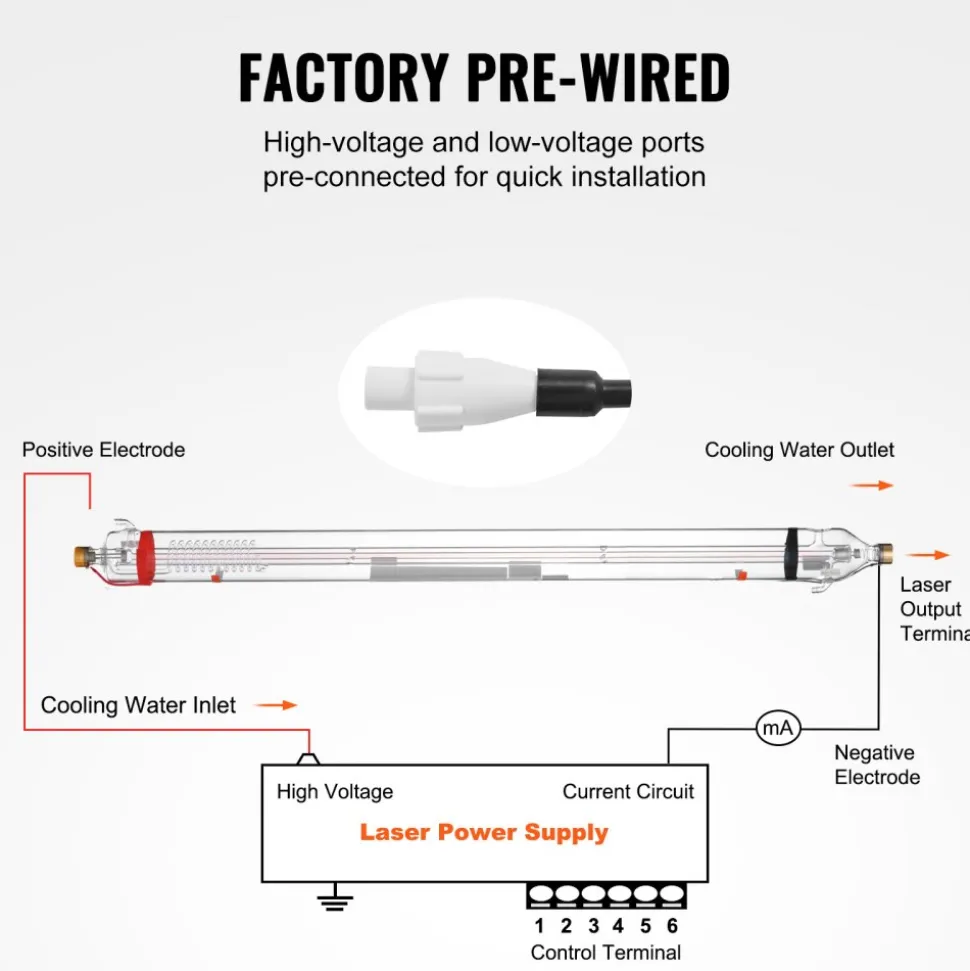

Pre-Connected Wires Enable Direct Terminal Attachment for Fast, Complication-Free Installation

The wiring process, which includes determining polarity, stripping leads, and ensuring the connections to the laser power supply terminals are secure, is one of the most common reasons for installation delays and mistakes when replacing a CO2 laser tube. This unit eliminates that friction by coming with wires already connected and clearly marked for connection to the positive and negative terminals.

If a shop operator needs to replace a broken tube quickly due to production pressure, the pre-wired setup lets the machine resume operation just minutes after the new tube is installed and cooled. It is a very useful feature for people who aren’t familiar with laser system electronics, as it allows them to set up the system without hiring a professional.

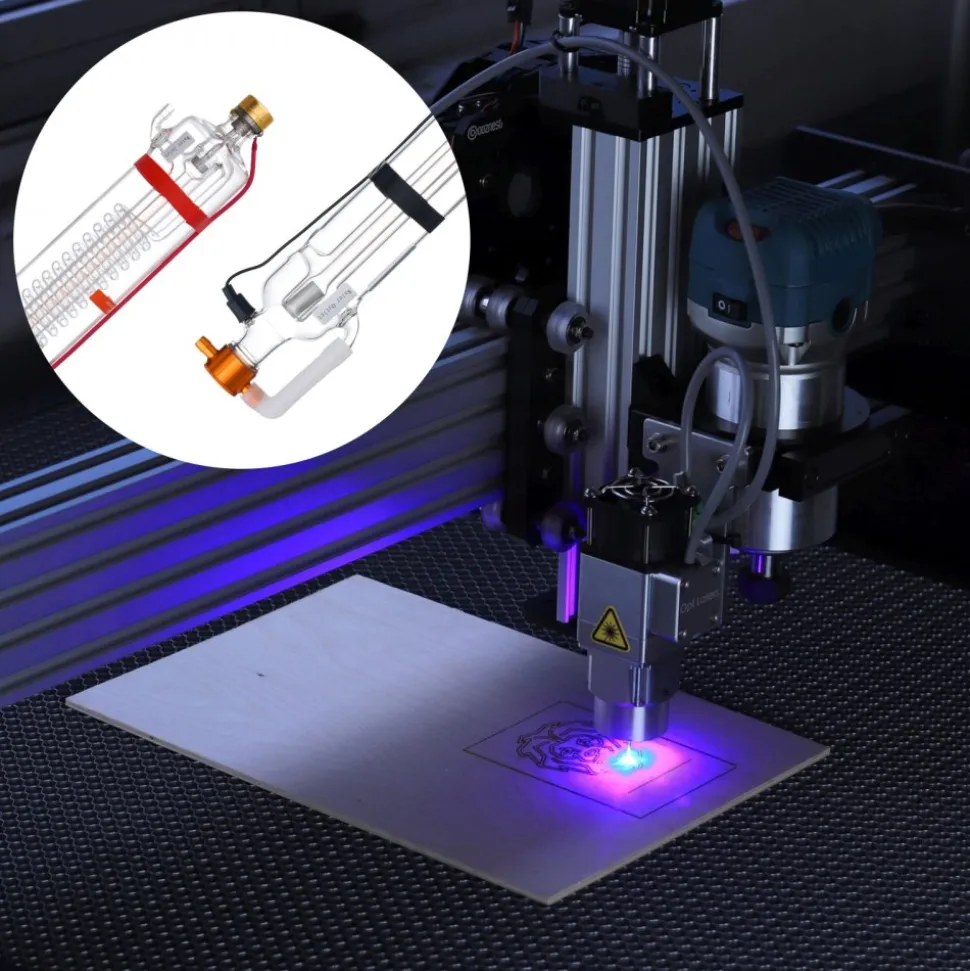

9.3–10.6 μm Wavelength Output Supports Engraving Metal, Glass, Leather, Wood, and Stone

This CO2 laser tube replacement emits light in the 9.3 to 10.6 micrometer range, which is where a wide range of non-metallic and coated metallic materials absorb radiation. This is why CO2 lasers at this wavelength are a leading choice for cutting and engraving in both industrial and craft settings. This wavelength is excellent at cutting wood and making high-contrast engravings.

At this wavelength, you can also mark many coated and anodized metals. It makes the tube useful for making advertising signs, marking industrial items, making packaging, and making specialty crafts. Because it can work with so many different types of materials, a single tube installation can be used for many revenue-generating purposes without changing equipment or the machine’s basic settings.

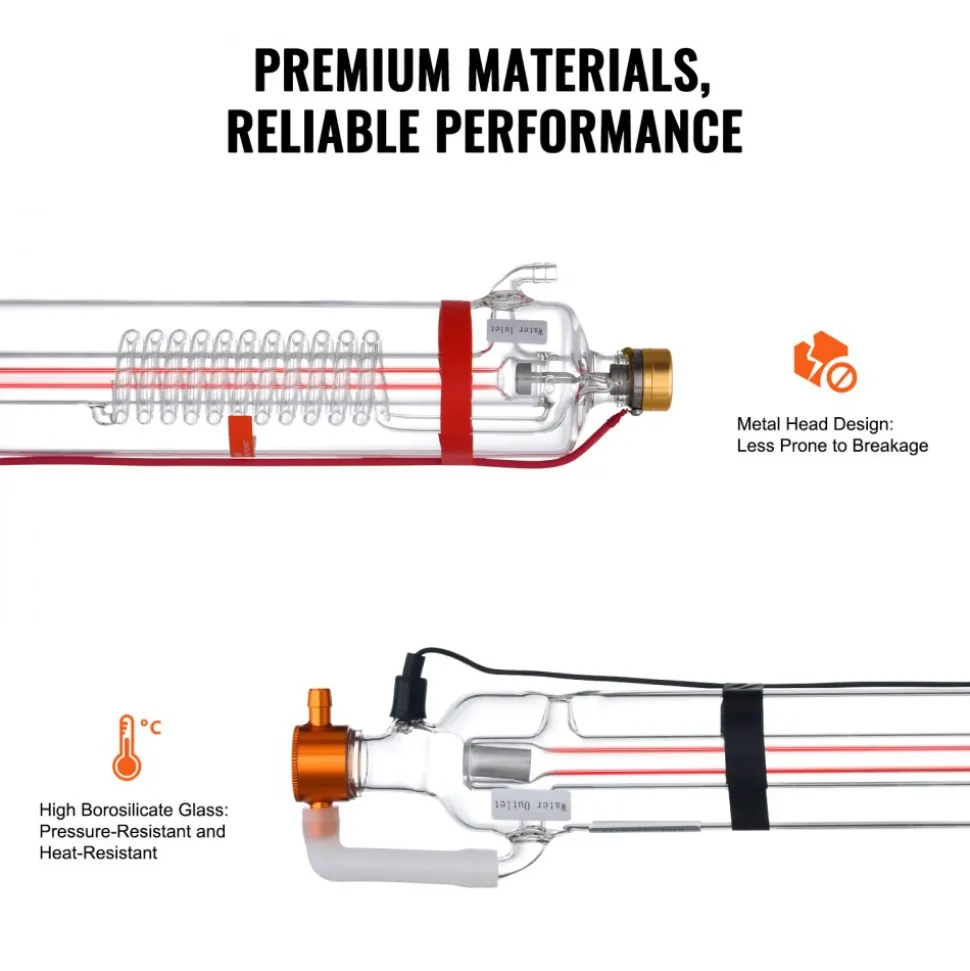

Metal Head Design with Wires Pre-Routed for Secure Mounting on Laser Engraving Machines

The metal head at the end of the tube provides a solid, thermally stable mounting point that helps keep the beam aligned even when the laser runs for a long time and vibrations and thermal expansion occur. Plastic or composite head materials bend and move over time, gradually causing the beam to go out of alignment. It lowers the cut quality and requires frequent recalibration.

Pre-routed wiring through the metal head assembly keeps leads organized and out of the way of the beam path and cooling water connections. It lowers the chance of accidental contact or interference while the machine is running. Clean wire routing also makes it easier to inspect and maintain in the future, as there are no bundled or tangled wires in the tube mounting area.
