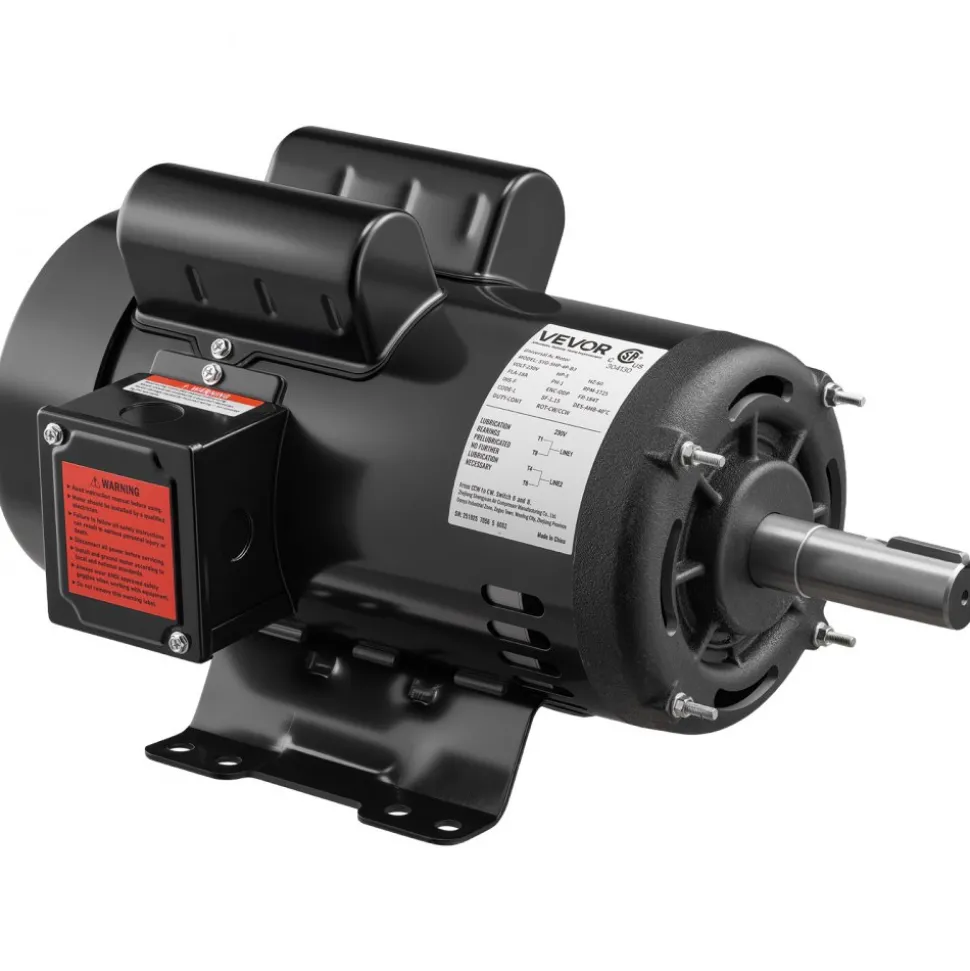

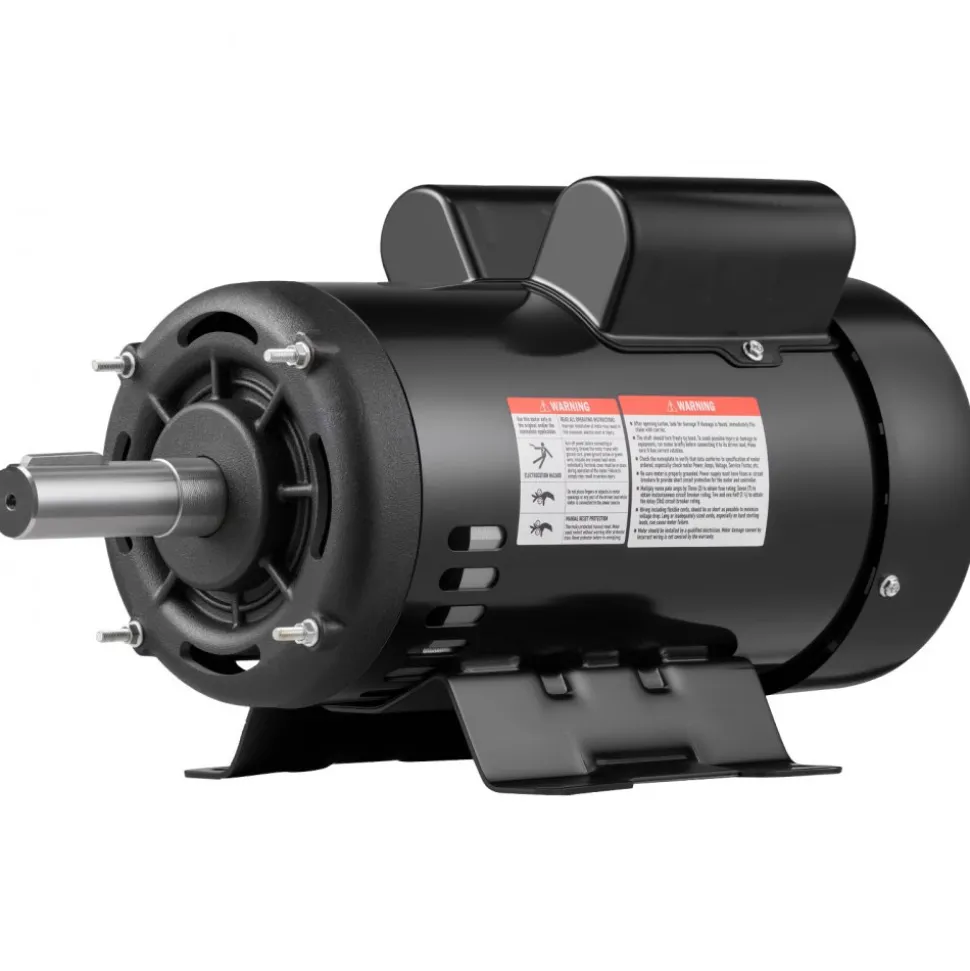

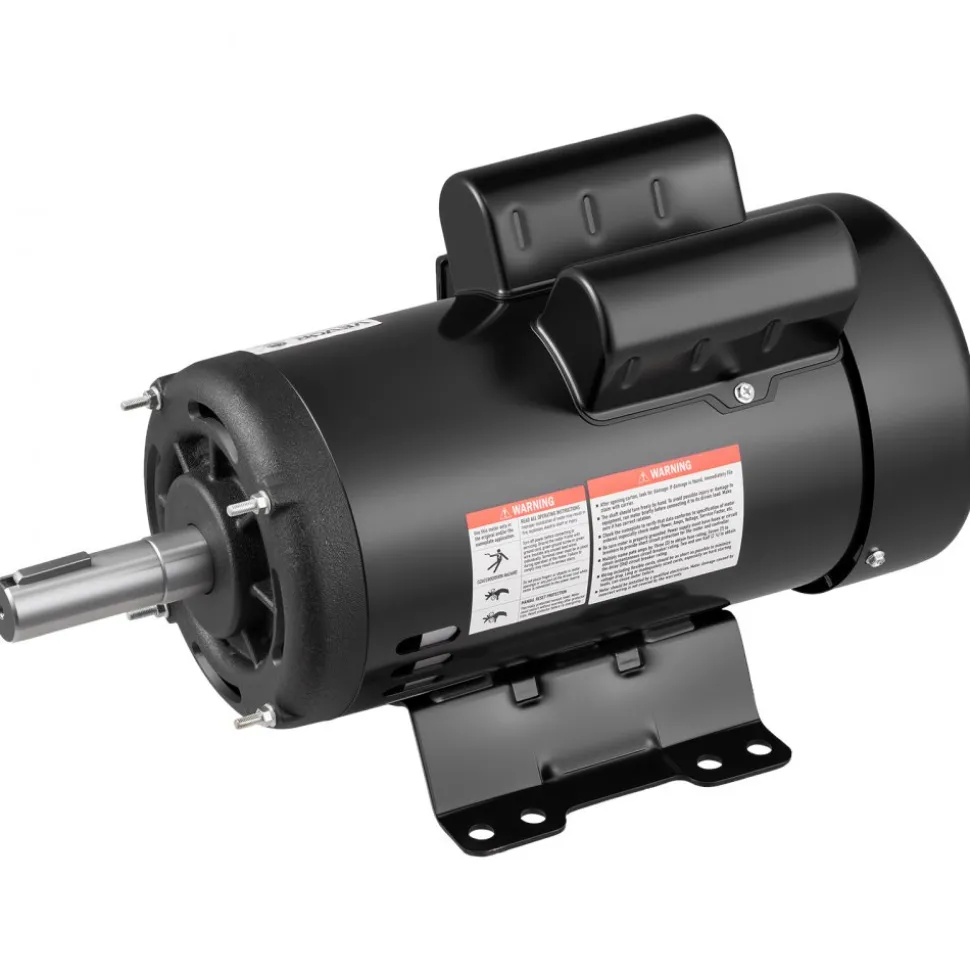

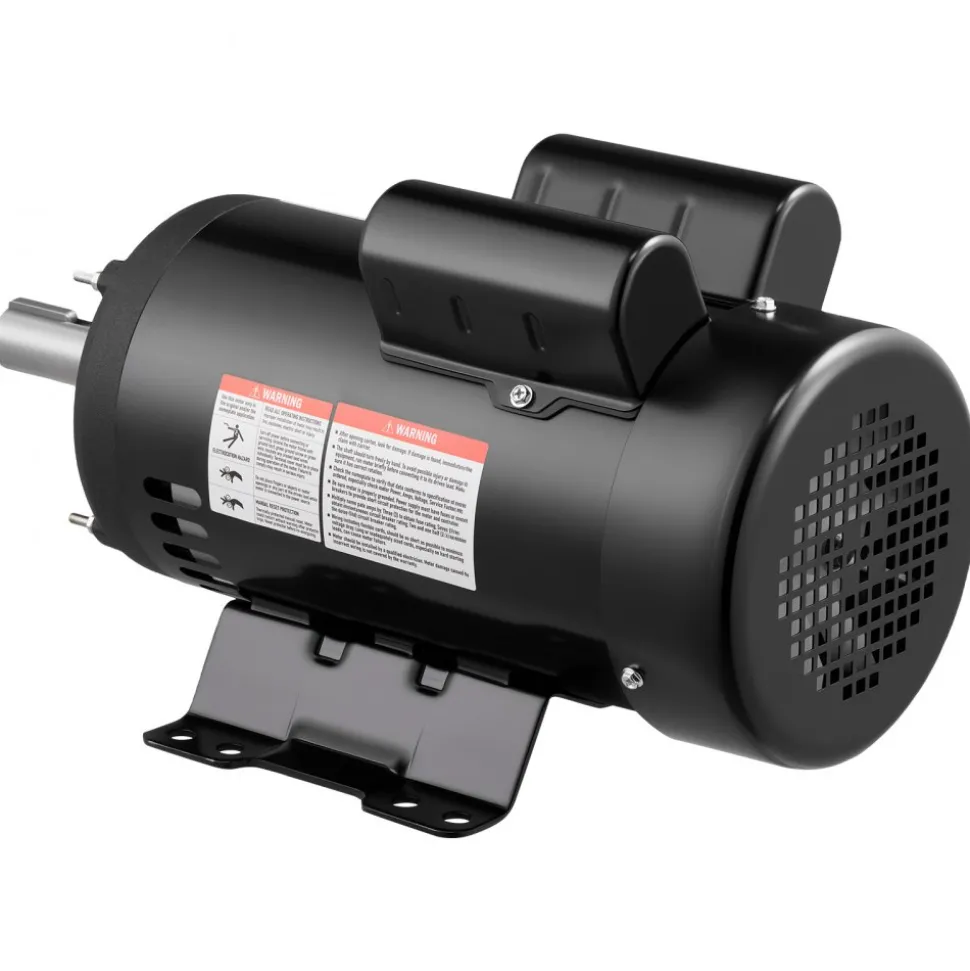

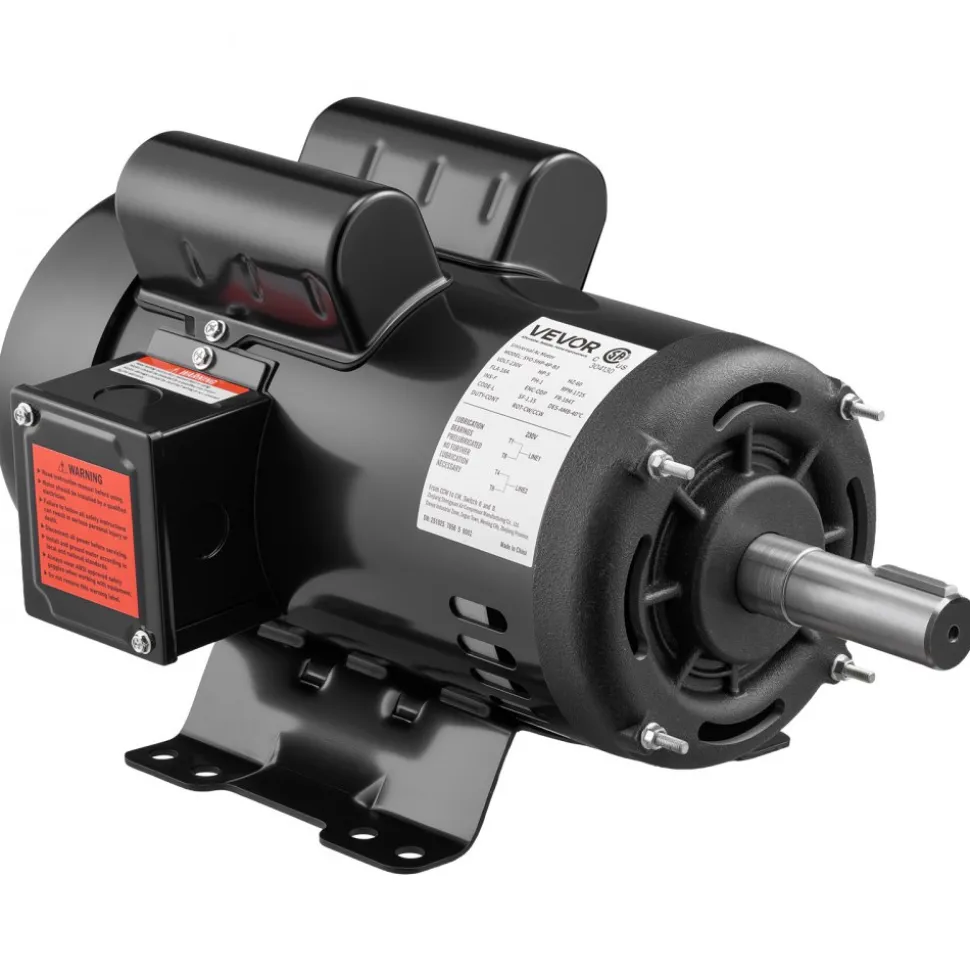

VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Single-Phase, ODP Cooling, 230V, 184T Frame
Original price was: $375.00.$132.99Current price is: $132.99.

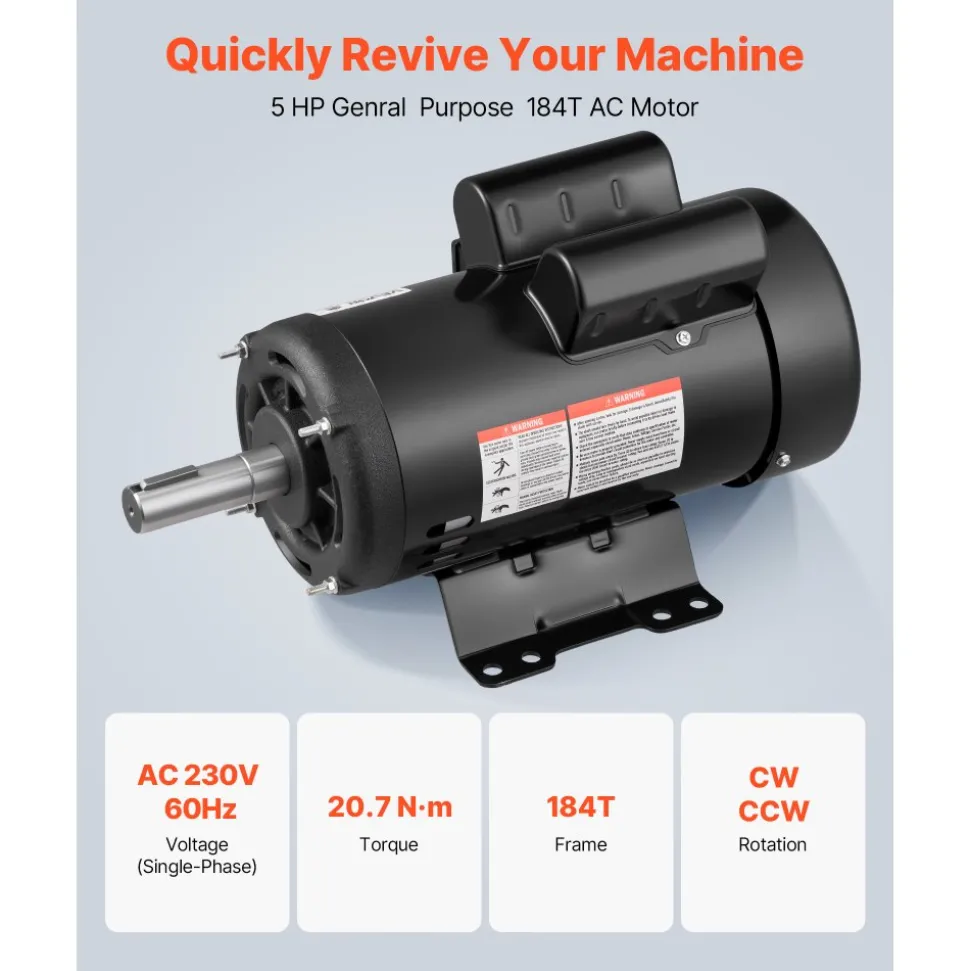

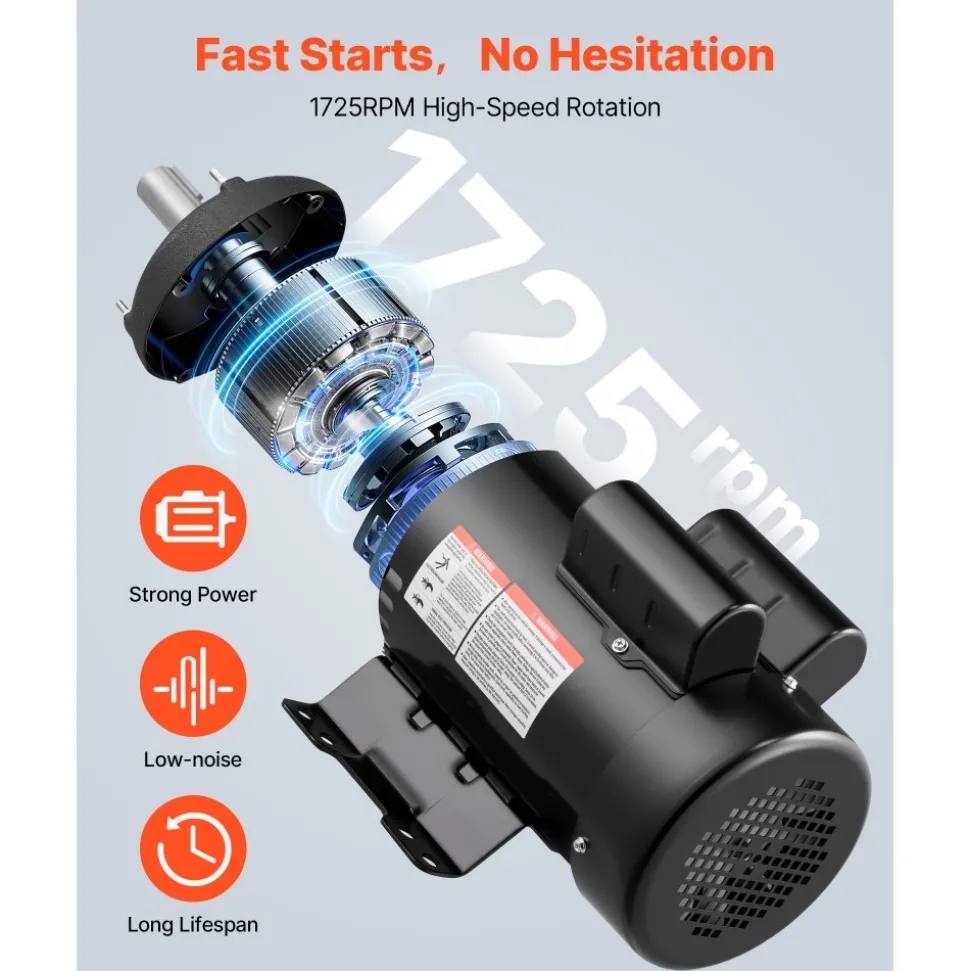

- High Performance: 5HP high-performance motor featuring 20.7 N.m rated torque. Designed for AC 230V 60Hz, single-phase power. The air compressor electric motor operates at 1725 RPM for fast, reliable speed

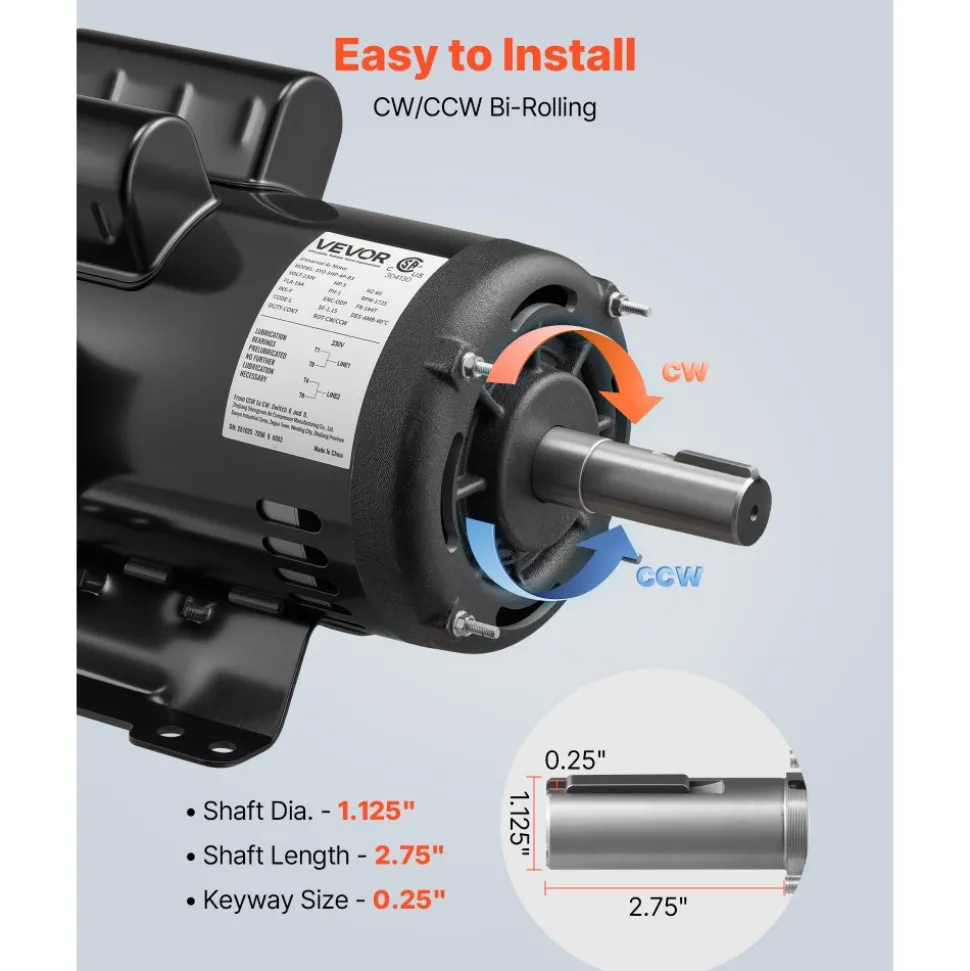

- Rugged Frame Type: The 184T frame of this electric motor includes a 1.125-inch shaft diameter, 2.75-inch shaft length, and keyway size: 0.188 inch ( 0.25 inch / 6.35 mm width x 0.125 inch / 3.18 mm depth)
- Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications
- Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
- Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

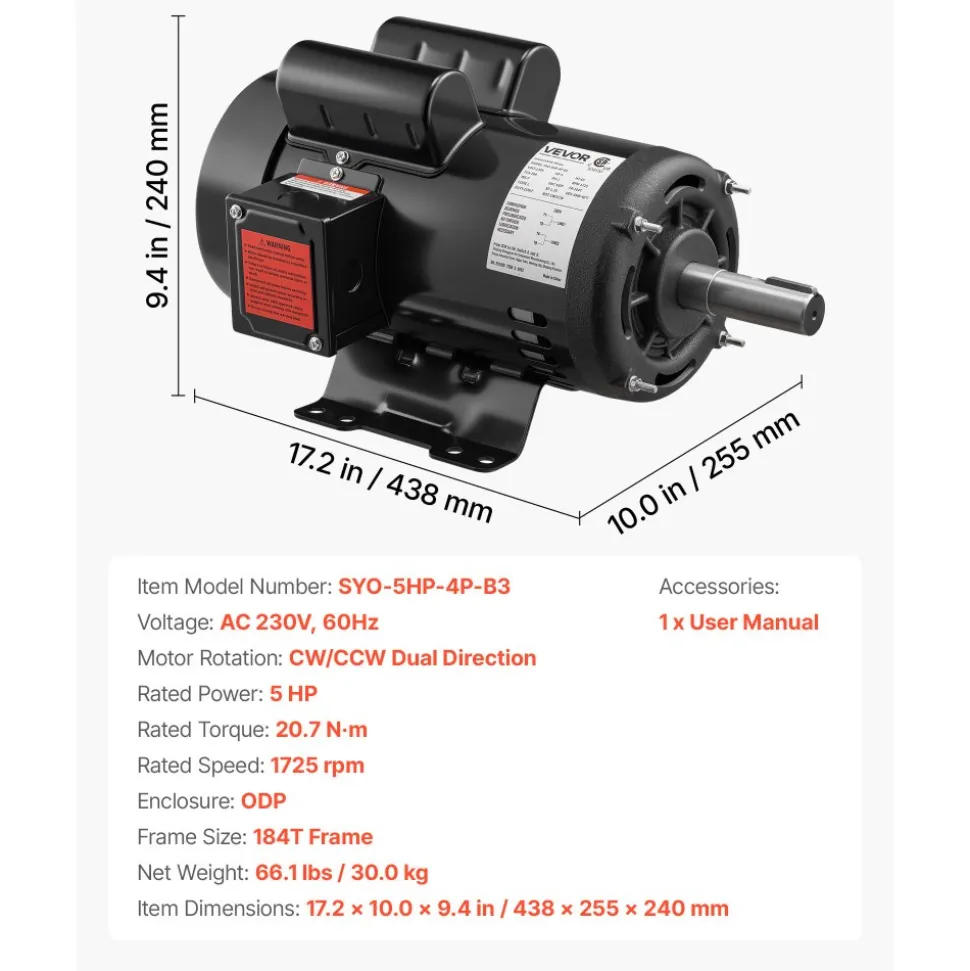

- Item Model Number
- SYT-5HP-4P-B3
- Voltage / Frequency
- AC 230V, 60Hz
- Rotation Direction
- CW/CCW Dual Direction
- Horsepower
- 5 HP
- Rated Torque
- 20.7 N.m
- Speed
- 1725 RPM
- Cooling Type
- ODP
- Main Materials
- Steel Plate Body
- Net Weight
- 66.1 lbs / 30.0 kg
- Item Dimensions
- 17.2 x 10.0 x 9.4 in / 438 x 255 x 240 mm
High-Performance AC Motor-Precision Power for Every Application
The high-performance AC motor delivers consistent output and installs on a robust frame base. It supports CW/CCW rotation for flexible setup and features improved energy efficiency with low operating noise. Built to international standards, it is easy to install and maintain.
Key Features
High-Strength Cast Iron Housing
Built tough for vibration resistance and reliable performance in demanding conditions

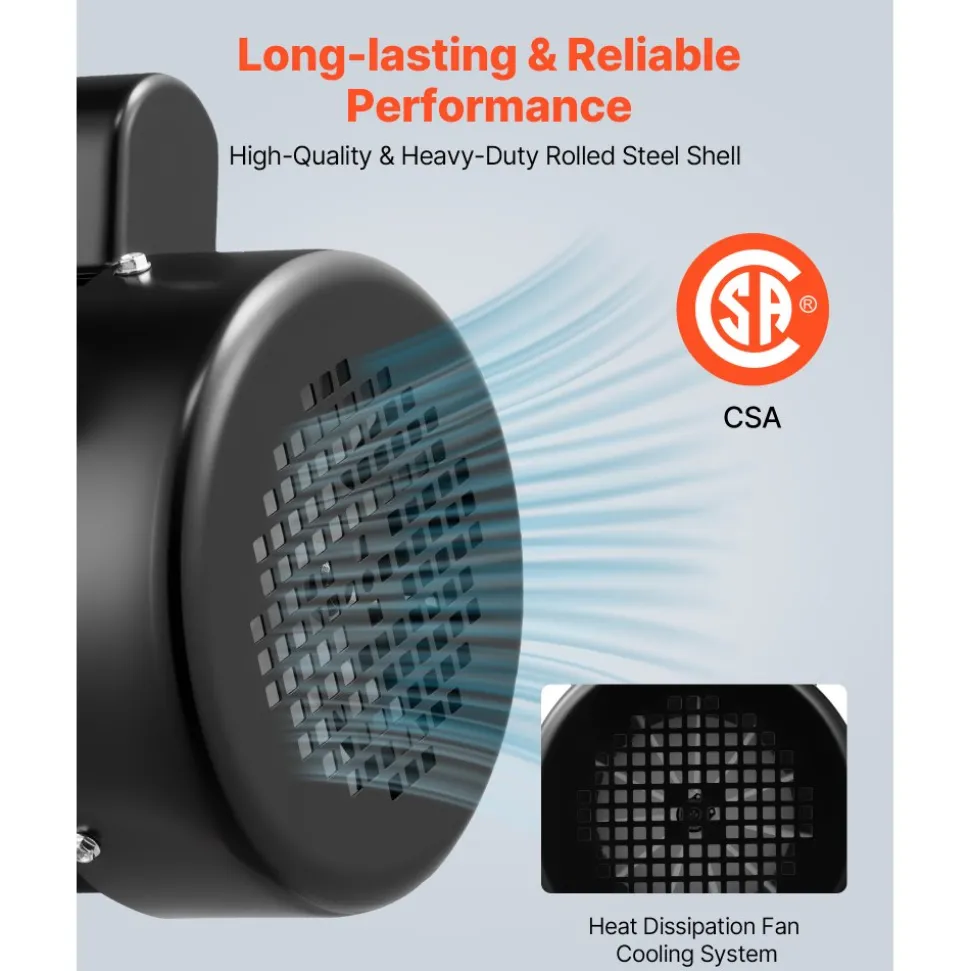

High-Efficiency Cooling Fan System
It ensures consistent heat dissipation during operation, extending the motor’s lifespan
CW/CCW Dual-Direction Capability
Supports both clockwise and counterclockwise rotation for flexible installation across various applications.
