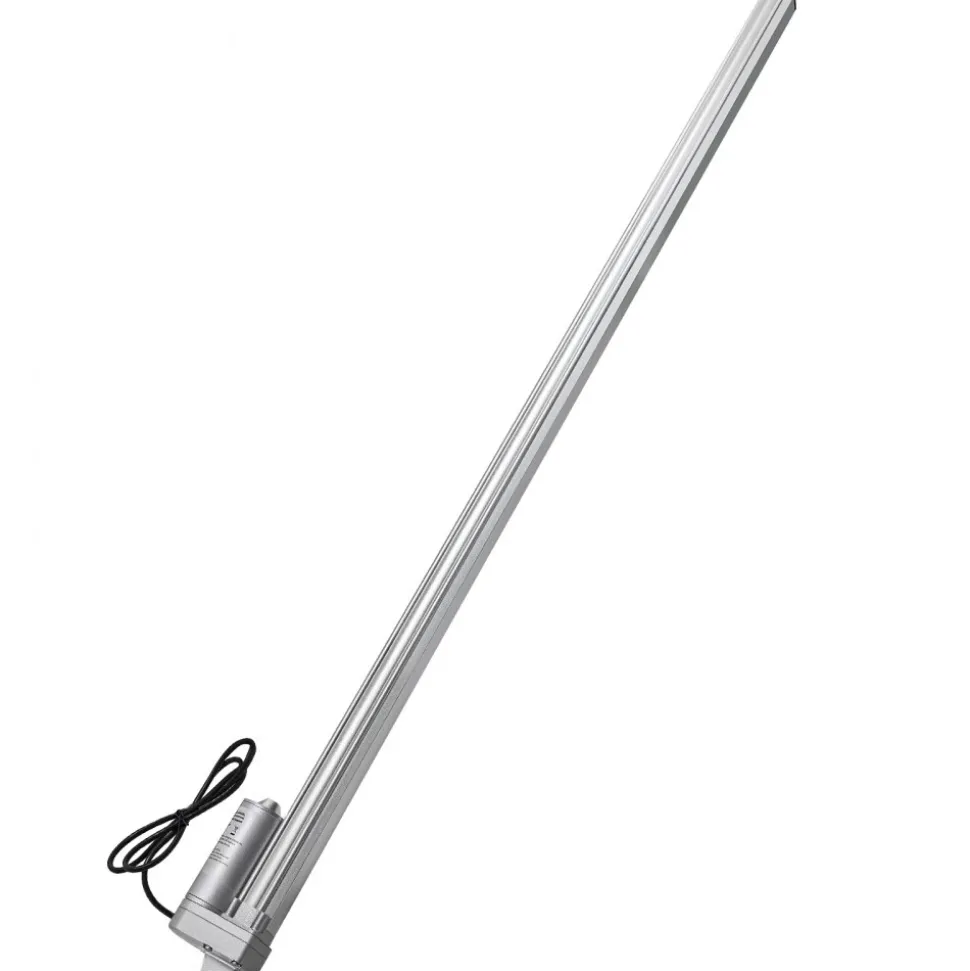

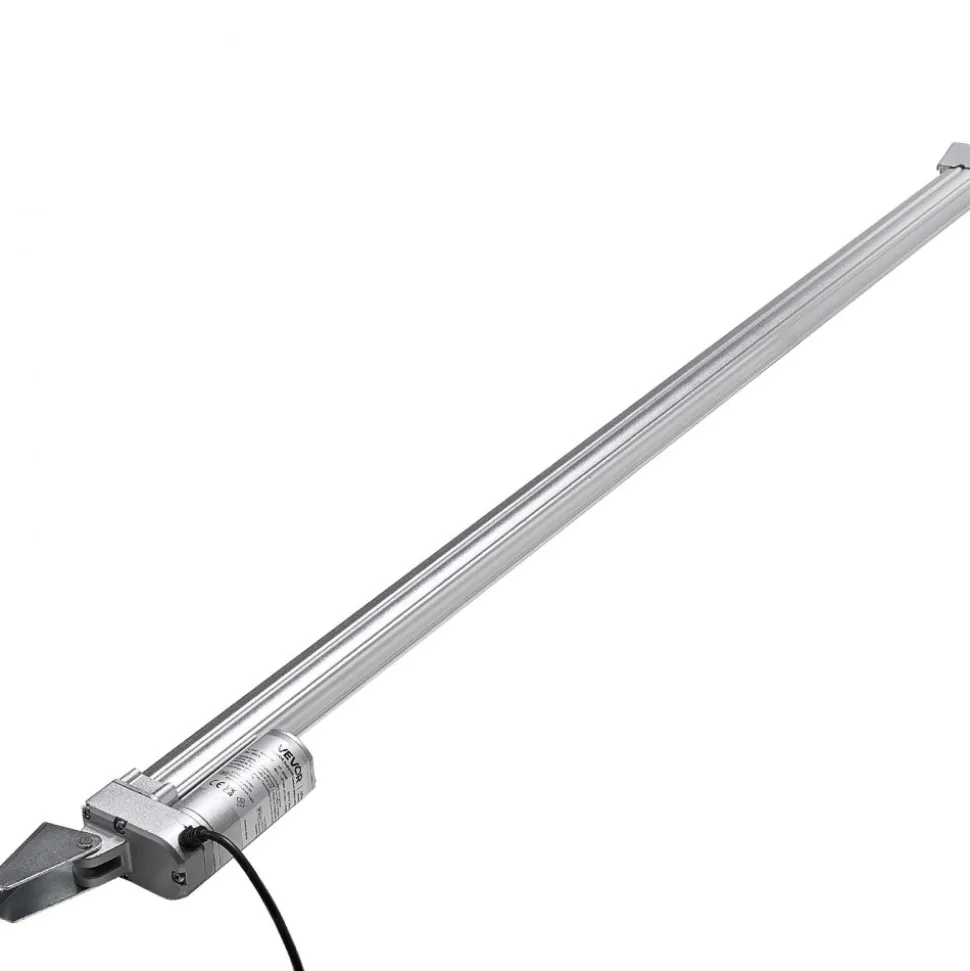

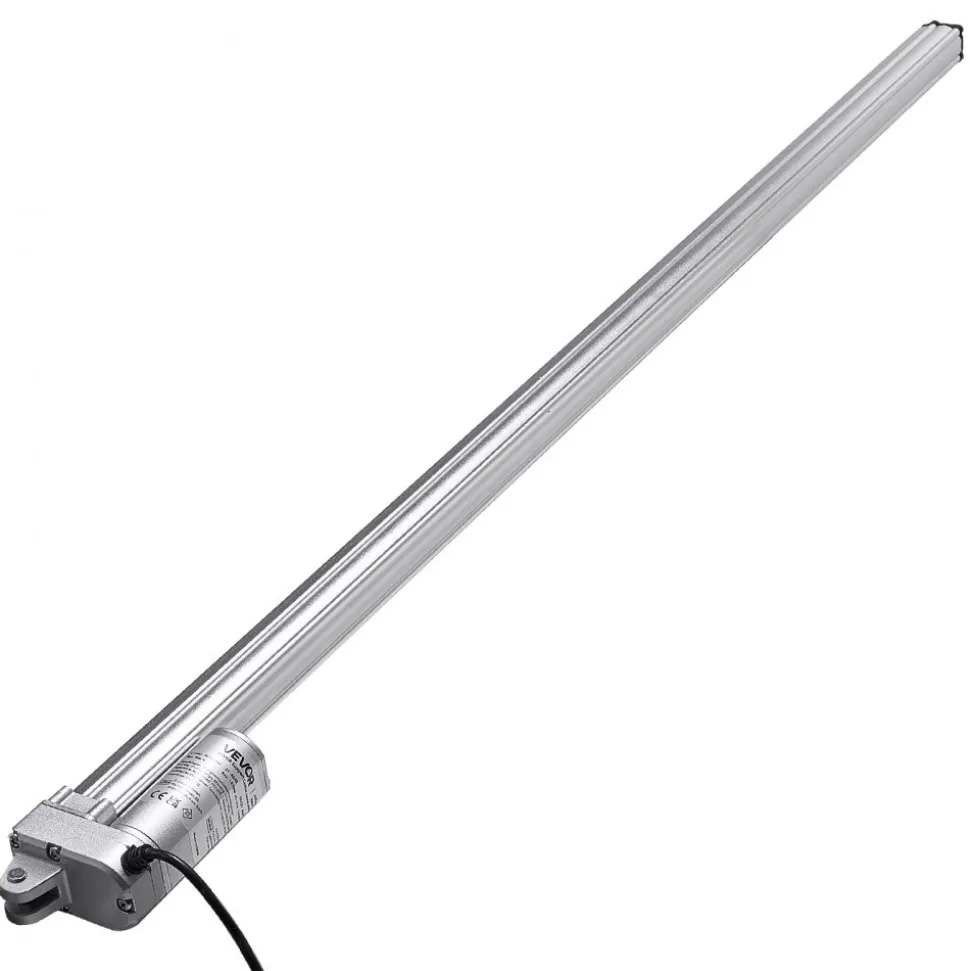

VEVOR 12V Linear Actuator, 12 Inch IP65 Waterproof Linear Actuator, 675lbs/3000N 0.2″/s Motion Actuators with Mounting Bracket for Outdoor Use

VEVOR Linear Actuator 12V Waterproof With DC Power Input

The VEVOR linear actuator 12v waterproof can be operated with any standard 12V DC power source, including batteries and automotive systems that provide regulated power. The system enables operation in mobile outdoor and off-grid locations because it provides power through standard equipment without requiring specialized electrical equipment.

The device requires approximately 6A for continuous operation, during which it maintains power consumption below the maximum limit. For cars, boats, and solar-powered devices, a small electrical load helps maintain voltage and keep motion steady.

3000N Thrust Capacity for Medium to Heavy Load Applications

With a maximum push of 3000N (675 lb), it can move large items such as doors, panels, hatches, and mechanical frames. It is possible to predict how well something will work under load because the output force stays the same throughout the stroke.

The internal screw drive evenly distributes power, reducing the risk of sudden movement or force loss. The actuator supports controlled positioning, making it useful when steady pressure and precise placement are required.

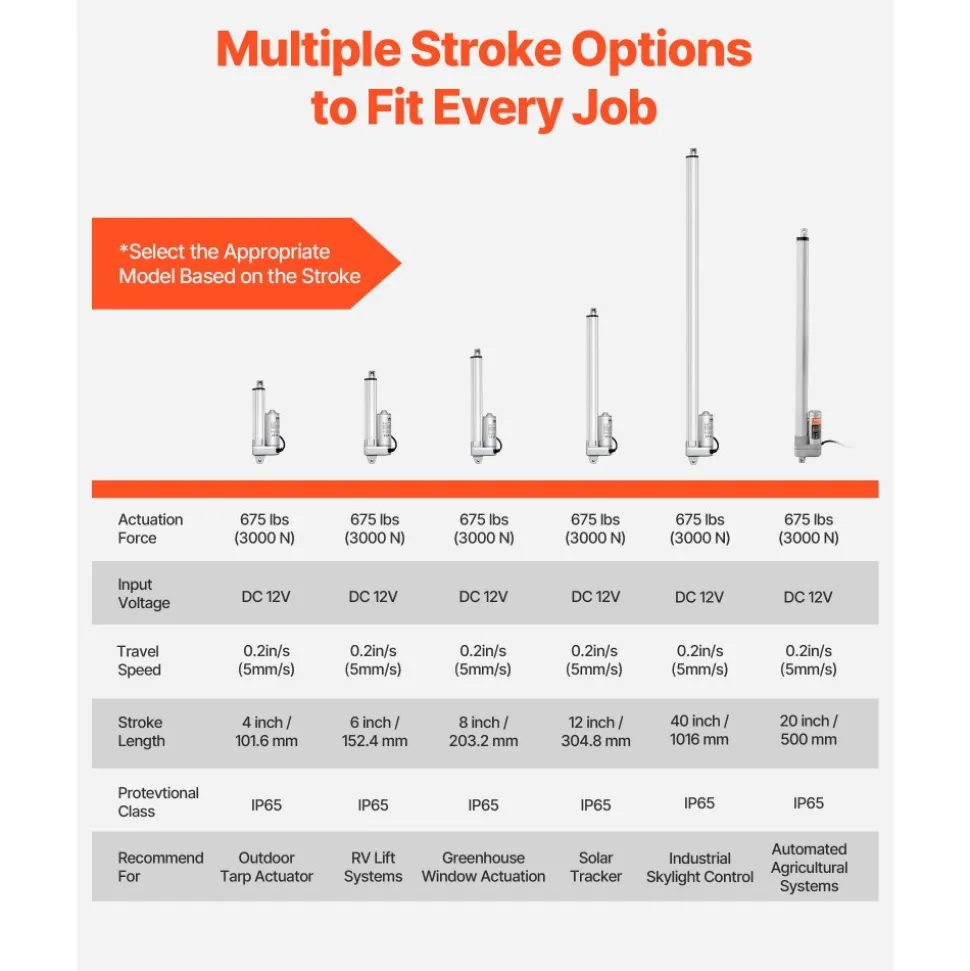

12-Inch Stroke Length for Accurate Linear Positioning

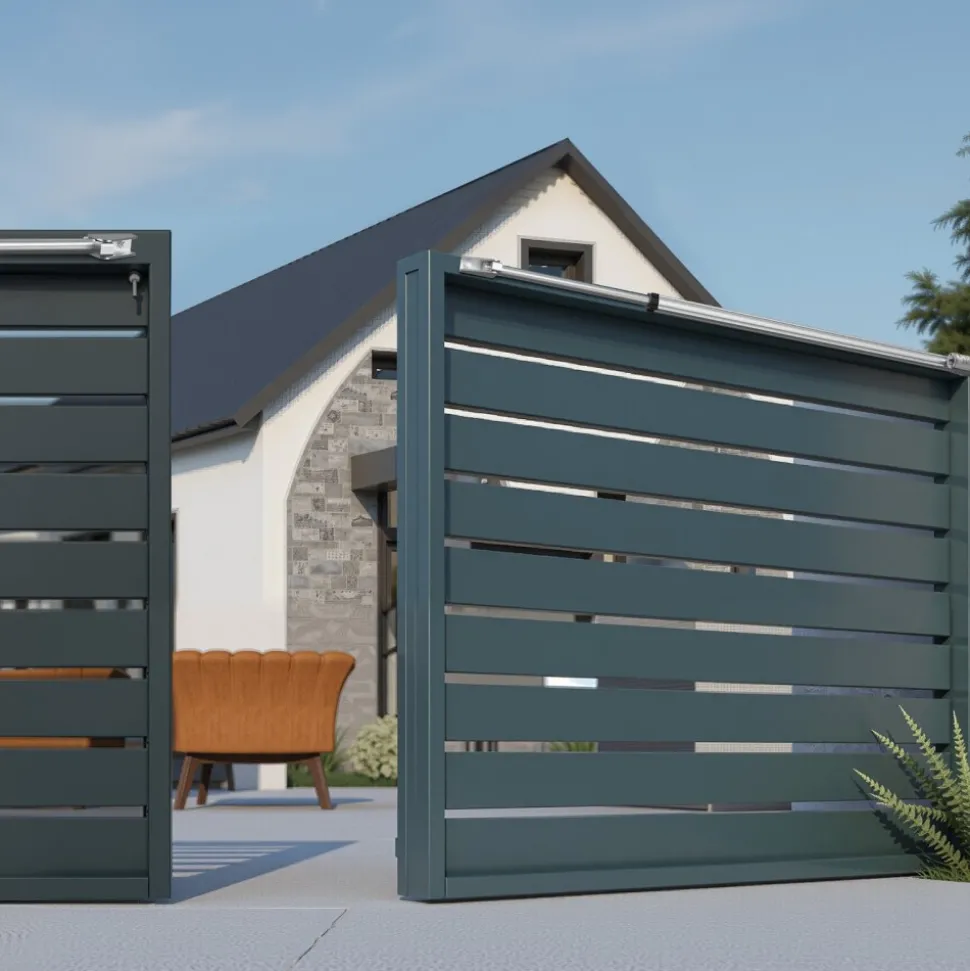

The stroke of the actuator is 12 inches (304.8 mm), allowing linear extension and retraction within that range. This range is useful for precisely positioning platforms for lifting, gates, and automated machinery, among other applications.

A built-in limit control ensures that full extension and retraction stop at specific positions. This keeps the actuator from going too far and allows it to move repeatedly, making it safe for applications that require steady linear movement.

Operating Speed of 0.2 Inches per Second for Controlled Motion

With a speed of 5 mm per second, the linear actuator 12v waterproof moves easily and evenly. A full stroke can be used when controlled movement is needed, even though it takes about 60 seconds. While it’s working, it helps lower the collision forces.

Keeping the speed under control keeps everything safer and keeps mounting points and joining structures from wearing out too quickly. Automation systems that value accuracy and smooth action over quick response can use this speed setting.

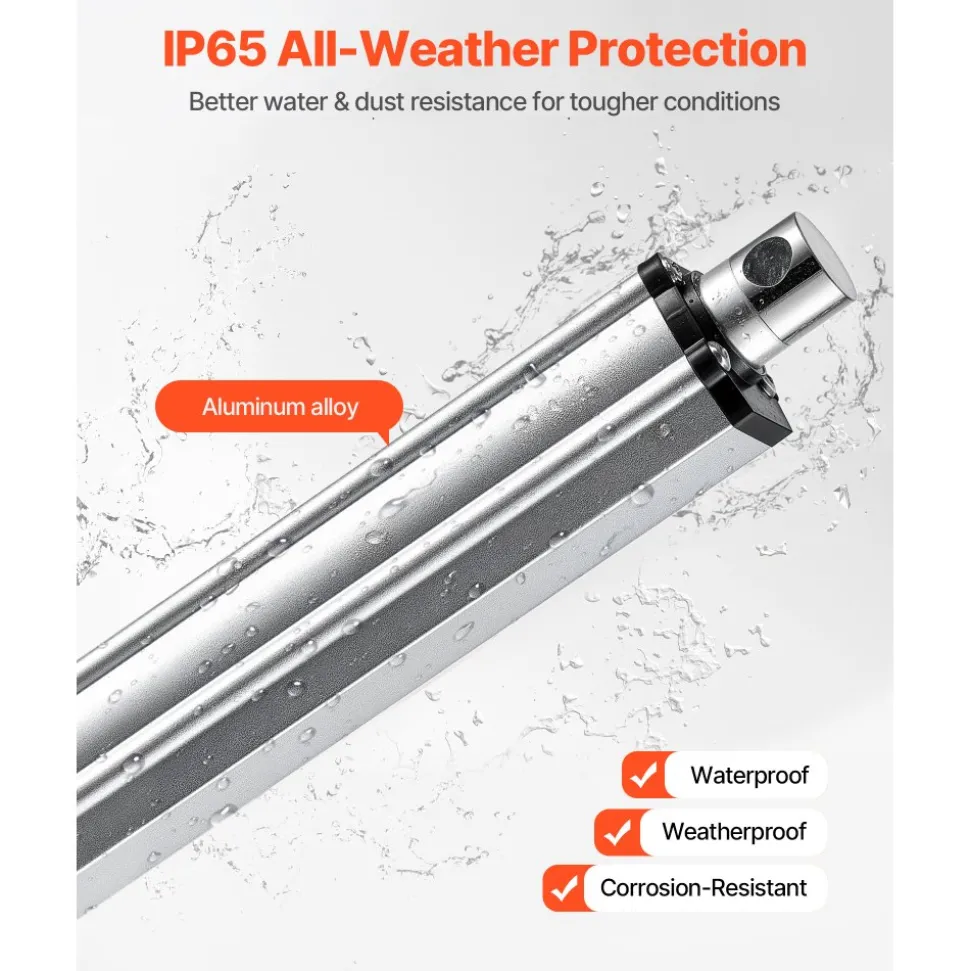

IP65 Waterproof Rating for Outdoor Protection

The linear actuator 12v waterproof has an IP65 rating, which means it can keep dust out and withstand water jets from all sides. This means that the actuator can work reliably outside, even if it gets wet or splashed with water. It doesn’t need any extra weatherproofing for everyday use outside.

Water can’t harm the electrical and mechanical components inside because of the protective design. This keeps it working the same way, even when the weather changes, making it last longer. With an IP65 grade, equipment, outdoor tools, and open automation systems can be used for a long time.

Aluminum Alloy Housing for Durable and Lightweight Construction

The actuator body is made of an aluminum alloy that is both strong and lightweight. Although it weighs about 4 pounds (1.82 kg), the actuator is strong enough to last and light enough to carry during installation. The case protects the internal components from external shocks.

Being naturally immune to corrosion, aluminum works well in wet or outdoor settings. Moving smoothly and lasting a long time in heavy-duty applications, the rigid housing keeps the internal parts aligned.

Linear Actuator 12V Waterproof With 25% Duty Cycle

The duty cycle of this linear actuator is 25%, meaning it can run continuously for up to 15 minutes before needing a 45-minute rest. This number helps prevent the motor from overheating or excessive load when used repeatedly.

For systems that don’t run continuously but do so intermittently, the duty cycle works well. Following the recommended cycle keeps performance steady and extends the actuator’s life. Because of this, it can be used to automate tasks that need to be moved around from time to time.

Built-In Limit Switches for Automatic Travel Control

When the linear actuator 12v waterproof is fully extended or retracted, it has built-in limit switches that stop movement right away. Without external stop controls, built-in limit switches provide accurate stops at both ends of the stroke.

This feature stops travel from going too far and saves internal parts like the motor and lead screw. It’s safer and more stable because it automatically stops at the end of the stroke. It also makes fitting easier by simplifying the wiring.

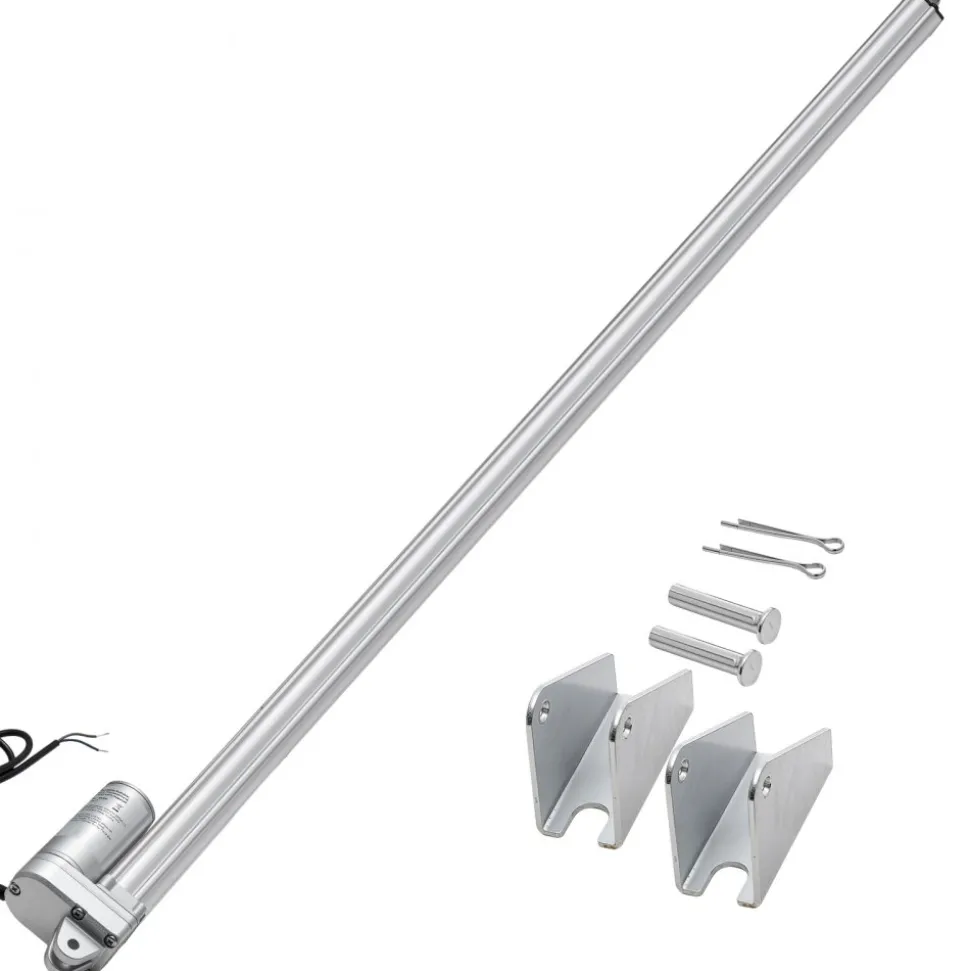

Mounting Bracket Included for Secure Installation

The bracket that comes with the actuator keeps it safely in place. You can mount the bracket horizontally or vertically, so you can choose the installation method that best suits you. Putting it into different mechanical systems makes it easy to do, so you don’t have to make any special parts.

The bracket holds the actuator firmly in place while it’s working, preventing it from moving or becoming misaligned. Secure mounting helps keep structures joined and improves motion accuracy. The included hardware speeds up setup and ensures the product will last.
